TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet

China TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet supplier
TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet supplier TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet supplier TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet supplier

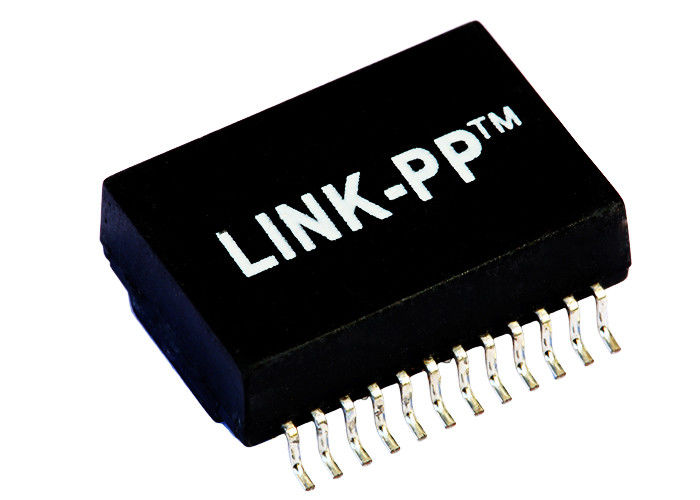

Large Image :  TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,SGS,Reach,RoHS
Model Number: TG111-HPE3NZRL

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3800000PCS/Month
Contact Now
Detailed Product Description
PN: TG111-HPE3NZRL Halo Item: TG111-HPE3NZRL
Made In China: LINK-PP LP6096ANL Applications: 100/1000 Base-T
Family: LAN Transformer Power+ Mounting: SMT
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet


TG111-HPE3NZRL = LP6096ANL

Trader Part Number 6TG111-HPE3NZRL Halo
Price Break Unit Price Extended Price
1-5 Free Free
10-50 2.2 >22
100-500 2 >200
1,000-2,500 1.6 >1600
5,000 1.4 >7000
10,000 Negotiable Negotiable
50,000  Negotiable Negotiable
100,000  Negotiable Negotiable
500,000  Negotiable Negotiable
Manufacturer

LINK-PP

Made In China

LP6096ANL  #LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Description Gigabit Magnetics Power Over Ethernet+
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available

2,000 PCS /  Or 5 weeks


LINK-PP Made In China,Factory Mass Production List:


TG111-HPE3NZRL 74990112121  13F-64YGD2PLNW2NL HFJ11-1G02E-L12V3RL
99751813-01 74990112121  XFATM2GA-CLGY1-2MS XFATM6CB-CLYG1-4MS
JX0011D21BNL J00-0045NL  MTJ-88TX1-FSZ-PG-D1LH-M7 MIC24013-5104T-LF3
RJLD260TC1 HY911105C HFJ11-E2450E-L12RL  TG111-HPE3NZRL
RJLD-260TC1 J1B1211CFD XFATM2E-Clxu1-4MS HFJ11-1G02E-L12V3RL
HY911105C 6605814-2 MIC24013-5104T-LF3 MIC66011-5171T-LF3
JXR0-0015NL RJLBC-060TC1 HFJ11-1G02E-L12V3RL XFO656P-CLxu1-4MS
13F-64HND2NL HY911105AE TG111-HPE3NZRL 24F-2011EGYD2SNWXNL
HFJ11-E2450E-RL 2-1840450-8 HFJ11-E2450E-L11RL LP6096ANL
SJTAB-40LB02-L RJLB-001TC1 13F-64GYDPNS2NL XFAMT6SA-CLGY1-4MS
TG111-HPE3NZRL J00-0045NL  HFJ11-1G02E-L12V3RL 24G-66JGYDPLZ2NL
74990112121  74990112121 TG111-HPE3NZRL HFJ11-1G02E-L12V3RL


TG111-HPE3NZRL ELECTRICAL SPECFICATIONS: @25℃

1.Insertion Loss(dB Max):
  0.1MHz: -1.2
  1-125MHz: -2.0
2.Return Loss(dB Min):
  1-40MHz: -16
  40-100MHz: -10
3.Cross Talk(dB Min):
  30MHz:-43
  60MHz:-37
  100MHz:-33
4.CMRR(dB Min):
  30MHz: -30
  200MHz: -15
5.DCR Balance: 1Ω %%P0.05Ω
6.OCL:
  (1) 350uH Min @20mA DC Bias
  (2) 120uH Min @30mA DC Bias
7.Temperature rise of 35℃ when supplying
  1 Amp continuous over 4 pairs
8.Hipot:1500Vrms
9.Operating Temperature: -40℃~+85℃.



NOTES:
1.Dual Port Transformer Modules With Power Over
  Ethernet+ Option
2.Exceeds IEEE 802.3at requirements with up
  to 720mA supply current
3.For RoHS part add suffix NL
4.RoHS"NLE" peak solder rating 250℃.

TG111-HPE3NZRL Halo Transformer Gigabit Magnetics IEEE802.3at Power Ethernet
