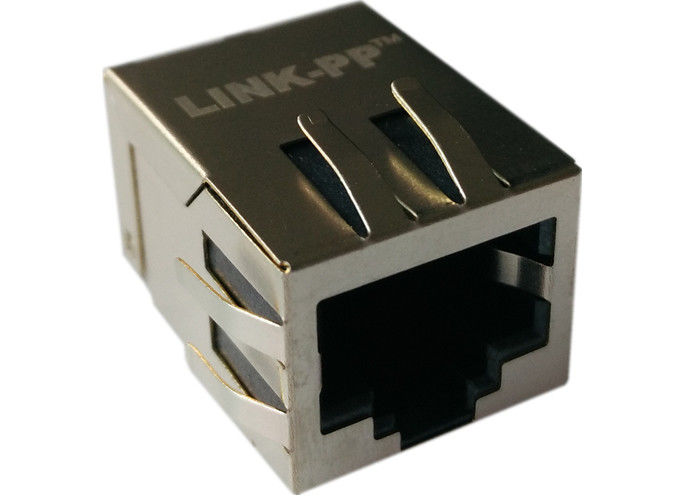

Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: JV011I21NL

Payment & Shipping Terms

Minimum Order Quantity: 720

Price: Supportive & Competitive

Packaging Details: Tape & Reel/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3200000/Month

Get Best Price
Highlight:

rj45 smt connector

,

surface mount rj45 connector

Trader Obsolete:
JV011I21NL
Updated PN:
LPJ19111CNL
Port:
Single
Applications:
Fast 100Base-TX
Family:
RJ45 SMT
LEDs:
Without
Trader Obsolete:
JV011I21NL
Updated PN:
LPJ19111CNL
Port:
Single
Applications:
Fast 100Base-TX
Family:
RJ45 SMT
LEDs:
Without
Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet

Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet


JV011I21NL Updated Version

Trader Part Number JV011I21NL  Obsoleted in our Mould
Price Break Unit Price Extended Price
1-5 Free -
10-50 2.5 -
100-500 2.0 -
1,000-2,500 dynamic dynamic
5,000 dynamic dynamic
10,000 Negotiable Negotiable
50,000  Negotiable Negotiable
100,000  Negotiable Negotiable
500,000  Negotiable Negotiable
Made In China

SM-LPJ19111CNL Competive

Manufacturer

LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available

2,000 PCS /  Or  5 weeks



100 Base-TX (Fast Ethernet) surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without
LEDS Integrated Magnetics Connector, designed to support applications such as: Set Top Box and
Network Interface Cars (NIC) JV011I21NL

1.RoHS peak wave reflow temperature rating 245°C
2.SMT product, reduced size and low cost
3.Meets IEEE 802.3 specification
4.High performance for maximum EMI suppression
5.Minimum 1500Vrms isolation per IEEE 802.3 requirement

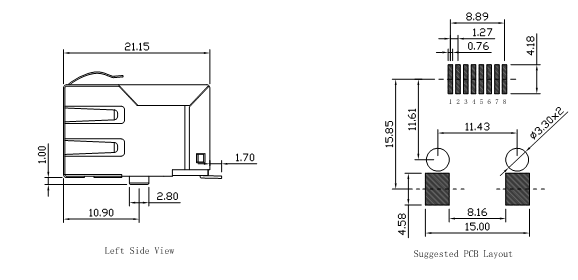

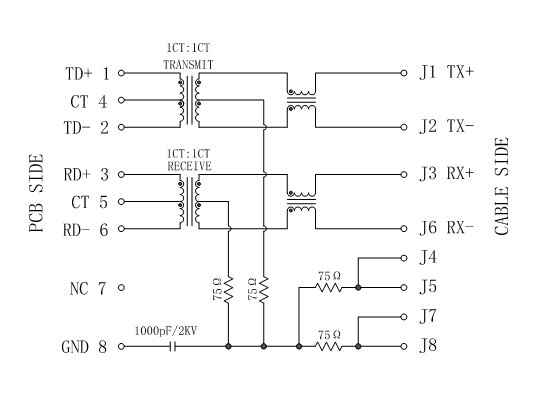

7.Partial Specifications :


Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet 0

Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet 1
