Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XRJH-01D-1-D12-170
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
PN: |
XRJH-01D-1-D12-170 |
Made In China: |
SM-LPJ1014AGNL |
Application: |
10/100Mbps |
Ethernet: |
Fast Lan |
Port: |
1,2 |
Hipot: |
1500V |
PN: |
XRJH-01D-1-D12-170 |
Made In China: |
SM-LPJ1014AGNL |
Application: |
10/100Mbps |
Ethernet: |
Fast Lan |
Port: |
1,2 |
Hipot: |
1500V |
|
XRJH-01D-1-D12-170 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
XRJH-01D-1-D12-170 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ1014AGNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

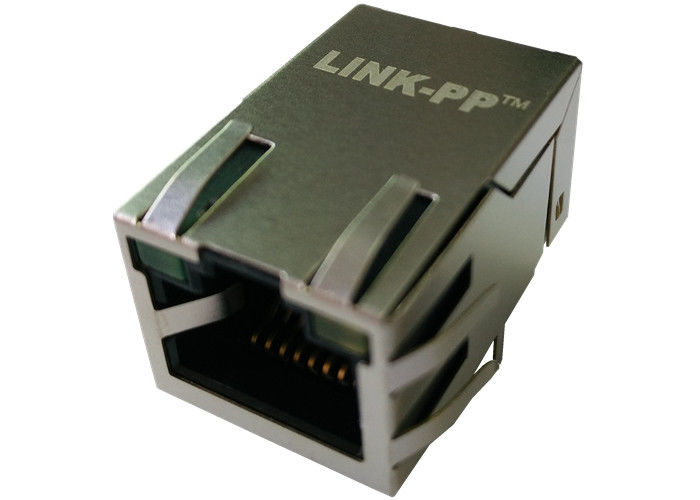

Description |
10/100Magjack Rj45 |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
LPJG0805GENL Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
HFJ11-1G02E-L12V3RL ELECTRICAL SPECFICATIONS: @25℃
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 0.1-100MHz
4.Return Loss:
-18dB MIN @ 1-40MHz
-14.5dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-40dB TYP @ 0.1-100MHz
7.Hipot Test: 1500Vrms
8.Operating Temperature: 0℃ TO 70℃./ -40℃ TO +85℃
