Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XFGIB100JM-CLGY1-4MS / XFGIB100JM-CLxu1-4MS
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Number Of Ports: |
1x1 |
Speed: |
100/1000 Base-T |
AutoMDIX: |
Yes |
PoE: |
NoN PoE |
Mounting Type: |
Through Hole |
Orientation: |
90° Angle (Right) |
Shielding: |
Shielded, EMI Finger |
Tab Direction: |
Down |
Number Of Ports: |
1x1 |
Speed: |
100/1000 Base-T |
AutoMDIX: |
Yes |
PoE: |
NoN PoE |
Mounting Type: |
Through Hole |
Orientation: |
90° Angle (Right) |
Shielding: |
Shielded, EMI Finger |
Tab Direction: |
Down |
| Category | Details |
|---|---|

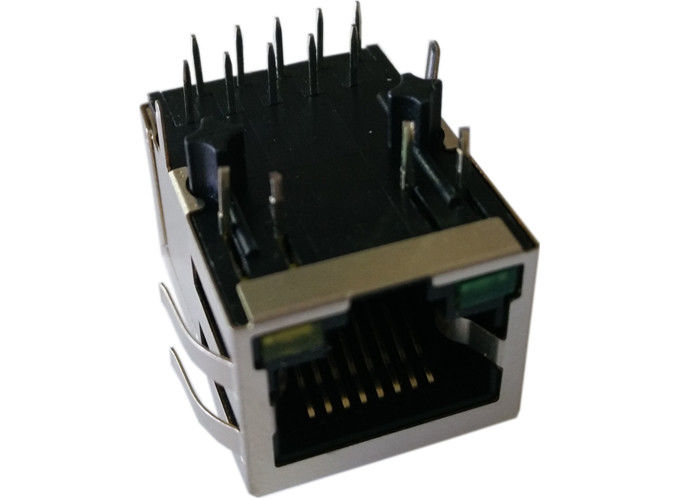

| Product Type | Modular Jack with Magnetics |
| Application (LAN) | Ethernet (Non-PoE) |
| Connector Type | RJ45 |
| Part Number | LPJG4813GENL |
| XFMRS Equivalent | XFGIB100JM-CLGY1-4MS / XFGIB100JM-CLxu1-4MS |
| Part Status | Active |
| Number of Ports | 1x1 Port |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Speed | 10/100/1000 Base-T |
| Auto MDI-X | Yes |
| Bst Circuit | Yes |
| Diodes | No |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
| Attribute | Details |
|---|---|
| Mounting Type | Through Hole (THT) |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Termination Style | Solder |
| Tab Direction | Down |
| Shield EMI Tabs | Yes |
| Shielding | Shielded with EMI Finger |
| Board Guide | Yes |
| PCB Retaining Post | T Post |
| Package Height | 0.524 in / 13.30 mm |
| Package Length | 0.837 in / 21.25 mm |
| Package Width | 0.627 in / 15.93 mm |
| Height Above Board | 0.537 in / 13.65 mm |
|
XFGIB100JM-CLGY1-4MS | XFGIB100JM-CLxu1-4MS |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
XFGIB100JM-CLGY1-4MS |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
LPJG4813GENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP |
|||||||||||||||||||||||||||||||
|
Description |
10/100/1000 Base-T RJ45 Connector |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
In Stock |
2,000 PCS |
|||||||||||||||||||||||||||||||
| Attribute | Details |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Contact Material | Phosphor Bronze |
| Contact Plating (Mating Area) | Gold 6μin / 15μin / 30μin / 50μin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| LED Option | With LED (Green/Yellow) |
| RoHS Compliance | YES - RoHS-5 with Lead in Solder Exemption |
| Packaging | Tray |
| PCB Material | FR4 |
