Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XFGIG12-CT1-4L
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
PN: |
SI-53015-F |
Made In China: |
SM-LPJK4071CNL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
LEDs: |
Flexible |
Hipot: |
1500V |
PN: |
SI-53015-F |
Made In China: |
SM-LPJK4071CNL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
LEDs: |
Flexible |
Hipot: |
1500V |
XFGIG12-CT1-4L |
||||||||||||||||||||||||||||||||
Trader Part Number |
XFGIG12-CT1-4L |
|
||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Made in China |
SM-LPJK4071CNL |
|||||||||||||||||||||||||||||||
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
Description |

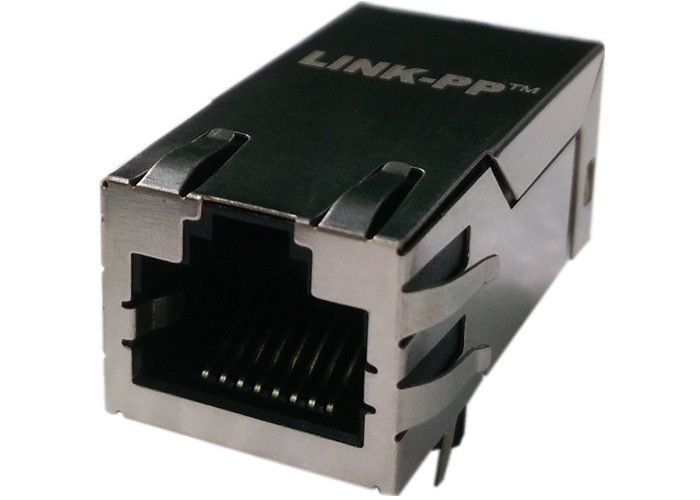

Gigabit Rj45 Jack W/LED |
|||||||||||||||||||||||||||||||
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
Quantity Available |
2,000 PCS or 4 weeks |
XFGIG12-CT1-4L Electrical Specifications @25℃
2.Turns Ratio(±2%):
1CT∶1
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.Hipot: 1500Vrms MIN
8.Operating Temperature: -40℃~+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
