Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: MIC38810-0157W-LF3【7499121000】
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
MIC38810-0157W-LF3 |
Competitor PN: |
7499121000 |
Made In China: |
SM-LPJGF26856CNL |
Ethernet: |
GIG Ethernet |
Port: |
1,2,4,6,8 Flexible |
Hipot: |
1500V |
Midcom PN: |
MIC38810-0157W-LF3 |
Competitor PN: |
7499121000 |
Made In China: |
SM-LPJGF26856CNL |
Ethernet: |
GIG Ethernet |
Port: |
1,2,4,6,8 Flexible |
Hipot: |
1500V |
|

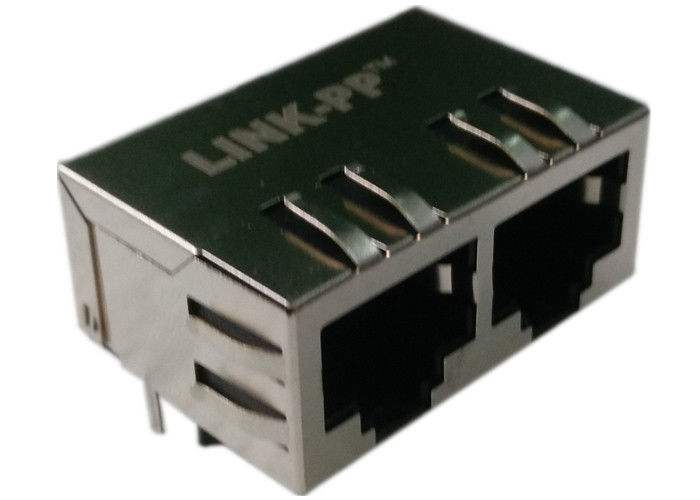

MIC38810-0157W-LF3 = 7499121000 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
MIC38810-0157W-LF3 7499121000 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJGF26856CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
1000Base-T Rj45 Jack 2 port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
MIC38810-0157W-LF3 / 7499121000 Electrical Specifications @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃
