Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: HFJ12-1G01E
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
HFJ12-1G01E |
Made In China: |
SM-LPJGF26813CNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x2 Dual |
Hipot: |
1500V |
Midcom PN: |
HFJ12-1G01E |
Made In China: |
SM-LPJGF26813CNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x2 Dual |
Hipot: |
1500V |
|
HFJ12-1G01E |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
HFJ12-1G01E |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJGF26813CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

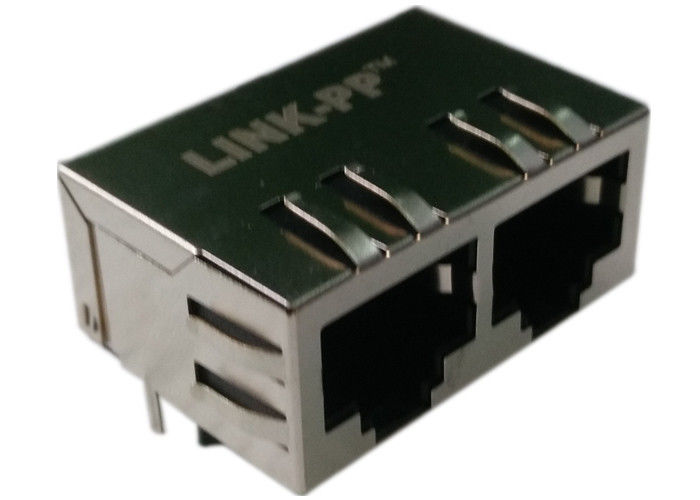

Description |
Gigabit Rj45 Jack Dual port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
HFJ12-1G01E Electrical Specifications @25℃
1.Turn Ratio(P2%):
1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-18dB MIN @ 1-40MHz
-14dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃
