Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: MD-15224TRU3-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
MD-15224TRU3-1 |
Made In China: |
SM-LPJG67037AENL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x2 Dual |
Hipot: |
1500V |
Midcom PN: |
MD-15224TRU3-1 |
Made In China: |
SM-LPJG67037AENL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x2 Dual |
Hipot: |
1500V |
|
MD-15224TRU3-1 UDE |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
MD-15224TRU3-1 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG67037AENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

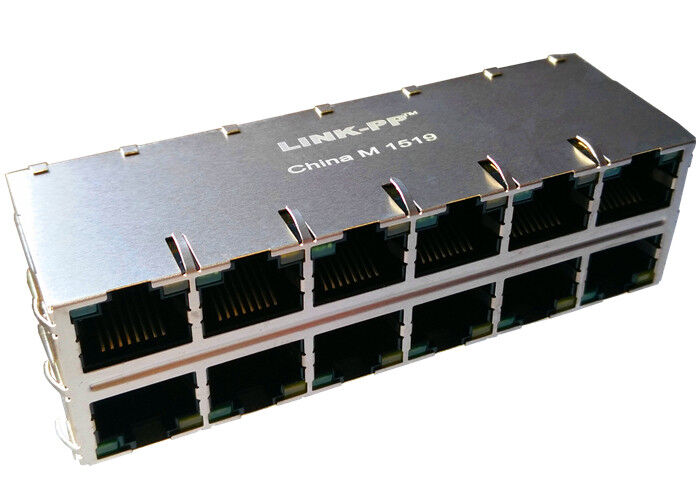

Gigabit Rj45 Jack Dual port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
MD-15224TRU3-1 Electrical Specifications @25℃
2.Turns Ratio: 1CT∶1CT
3.Insertion Loss:
0.5～100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5～30MHz:-18
30.1～60MHz:-18-20Log(f/30MHz)
60.1～80MHz:-12
5.Crosstalk(dB Min):
0.5～40MHz:-35
40.1～100MHz:-33-20Log(f/50MHz)
6.Common Mode Rejection Ratio(CMRR):
0.5～100MHz:-30dB Min
7.Hi-Pot: 1500Vrms @60Hz
8.Operating Temperature: -40℃～+85℃.
