Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM5-172A9U3F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
RM5-172A9U3F |
Made In China: |
SM-LPJG47553BSNL |
Application: |
Industry Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2x4 |
Hipot: |
1500V |
Midcom PN: |
RM5-172A9U3F |
Made In China: |
SM-LPJG47553BSNL |
Application: |
Industry Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2x4 |
Hipot: |
1500V |
|
RM5-172A9U3F |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
RM5-172A9U3F |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG47553BSNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

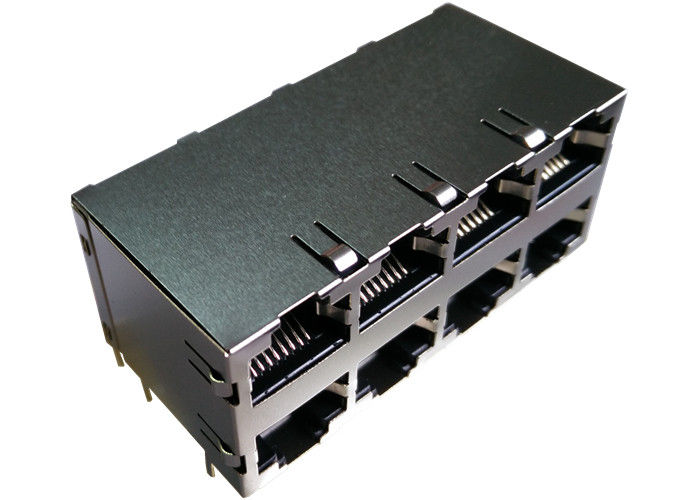

Description |
Gigabit Rj45 Jack Dual port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
RM5-172A9U3F Electrical Specifications @25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.Inductance(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Transmitter & Receiver filter
Insertion Loss:
1～100MHz:-1.0dB MAX
100～125MHz:-1.2dB MAX
Return Loss:
1～30MHz:-18dB MIN.load 100Ω
30～60MHz:-16dB MIN.load 100Ω
60～80MHz:-12dB MIN.load 100Ω
80～100MHz:-10dB MIN.load 100Ω
4.Crosstalk:
1～100MHz:-30dB MIN
5.Common Mode Rejection:
1～100MHz:-30dB MIN
6.HiPot Test: 1500Vac,60sec
7.Operating Temperature Range: 0℃～70℃.
