Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: RDB-12GFAK1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
RDB-12GFAK1A |
Made In China: |
SM-LPJG46803BHNL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
1x4 Quad Port |
Hipot: |
1500V |
Midcom PN: |
RDB-12GFAK1A |
Made In China: |
SM-LPJG46803BHNL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
1x4 Quad Port |
Hipot: |
1500V |
|
RDB-12GFAK1A |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
RDB-12GFAK1A |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG46803BHNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

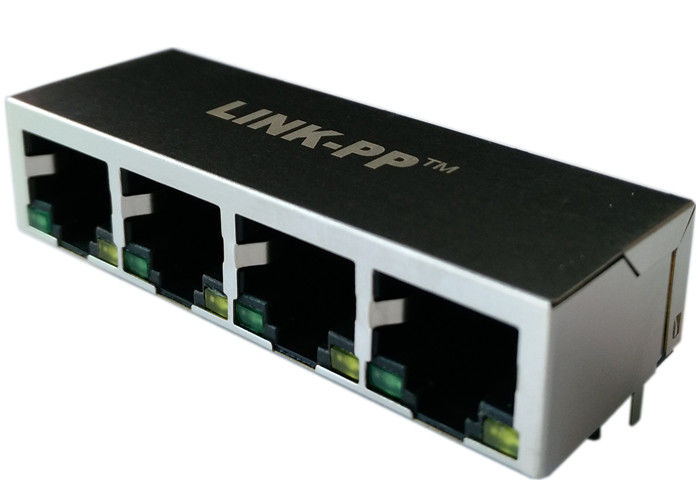

Gigabit Rj45 Jack Quad port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
RDB-12GFAK1A Electrical Specification @25℃
1.Turns Ratio(±2%): 1CT∶1
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
0.3～100MHz:-1.2dB Max
4.Return Loss(dB Typ @100Ω):
1～30MHz:-16 40MHz:-13.5
50MHz:-11.5 60～80MHz:-10
5.Crosstalk(dB Typ):
1～30MHz:-40 60MHz:-36
60～100MHz:-30
6.DCMR(dB Typ):
30MHz:-35 60MHz:-32
100MHz:-30
7.Hipot: 1500Vrms
8.Operating Temperature: 0℃～70℃.
