Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 1-6610005-5
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
1-6610005-5 |
Made In China: |
LPJG28831A115NL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
Midcom PN: |
1-6610005-5 |
Made In China: |
LPJG28831A115NL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
|

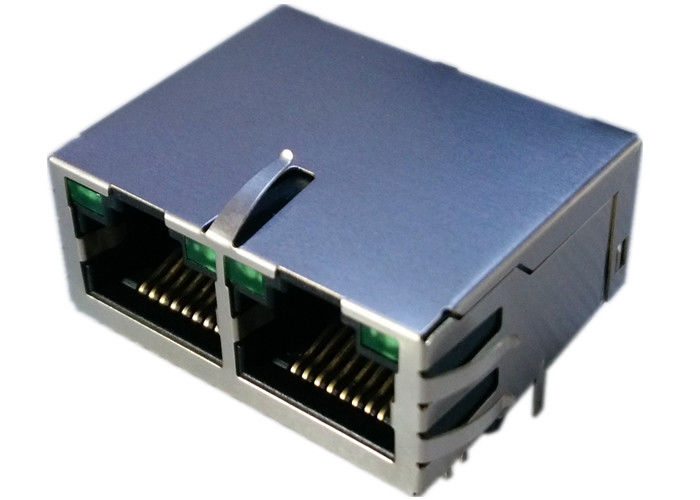

LINK-PP Rj45 LPJG28831A115NL Cross 1-6610005-5 |
||||||||||||||||||||||||||||||||
|
Specification |
1-6610005-5 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Equivalent Part |
LPJG28831A115NL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Gigabit Rj45 Jack Double ports |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
| 1-6610005-5 Electrical Specifications @25℃ 1.OCL: 350uH MIN @100KHz,0.1V,8mA DC BIAS 2.Turns Ratios: 1CT∶1 3.Insertion Loss: 0.5～100MHz:-1.1dB MAX 4.Return Loss: 0.5～40MHz:-18dB MIN 40.1-100MHz:-12-20LOG(f/80)dB MIN. 5.Crosstalk: 0.5～40MHz:-35dB MIN 40.1-100MHz:-33-20LOG(f/50)dB MIN. 6.Common Mode Rejection Ratio: 0.5～100MHz:-30dB MIN 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature: 0℃ TO +70℃. |
|
