Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 0875-1G2T-E3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
0875-1G2T-E3 |
Made In China: |
SM-LPJG28818AFNL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
Midcom PN: |
0875-1G2T-E3 |
Made In China: |
SM-LPJG28818AFNL |
Application: |
Fiber Network Switch |
Shield: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
|
0875-1G2T-E3 Belfuse |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
0875-1G2T-E3 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG28818AFNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

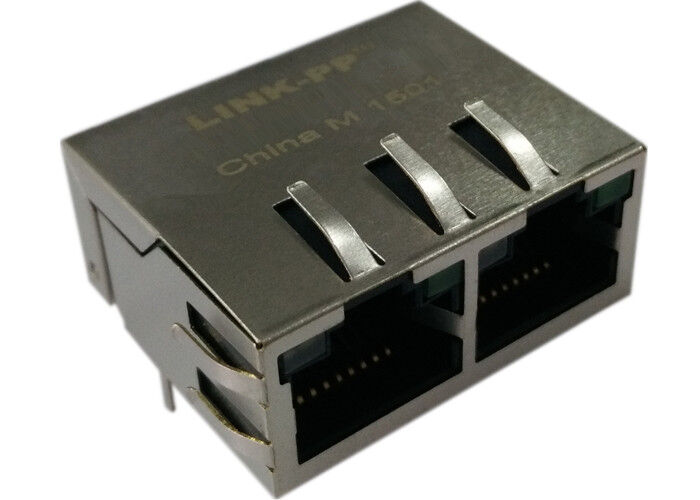

Gigabit Rj45 Jack Double ports |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
0875-1G2T-E3 Electrical Specifications @25℃
1.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
2.Insertion Loss:
1～100MHz:-1.0dB MAX
100～125MHz:-1.2dB MAX
3.Return Loss:
1～30MHz:-18dB MIN.load 100Ω%%P15Ω
30-60MHz:-16dB MIN.load 100Ω%%P15Ω
60～80MHz:-12dB MIN.load 100Ω%%P15Ω
80～100MHz:-10dB MIN.load 100Ω%%P15Ω
4.Crosstalk:
1～30MHz:-40dB MIN
30～60MHz:-35dB MIN
60～100MHz:-30dB MIN
5.Common Mode Rejection:
1～60MHz:-40dB MIN
60～100MHz:-30dB MIN
6.HiPot (60Hz/1min): 1500Vrms MIN
7.Operating Temperature: 0℃ TO +70℃.
