Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: XFGIB100-CLxu2-4MS
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
XFGIB100-CLxu2-4MS |
Made In China: |
SM-LPJG26919AENL |
Application: |
Gigabitl Ethernet Switch |
Shield: |
Shielded W/LEDs |
Port: |
1x2 Port |
Hipot: |
1500V |
Midcom PN: |
XFGIB100-CLxu2-4MS |
Made In China: |
SM-LPJG26919AENL |
Application: |
Gigabitl Ethernet Switch |
Shield: |
Shielded W/LEDs |
Port: |
1x2 Port |
Hipot: |
1500V |
|
XFGIB100-CLxu2-4MS |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
XFGIB100-CLxu2-4MS |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG26919AENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

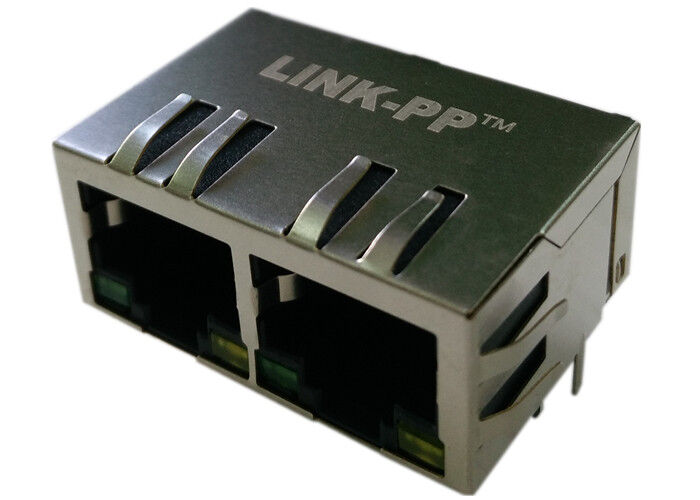

Gigabit Rj45 Jack 2 port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
XFGIB100-CLxu2-4MS Electrical Specifications @25℃
1.OCL(@100KHz,100mV,8mA DC Bias):350uH min
2.Turns Ratio: 1CT∶1CT %%P2%P
3.Insertion Loss:
100KHz:-1.2dB Max
1～125MHz:-0.2-0.002*f dB Max
4.Return Loss(@100Ω ±15%):
0.1～40MHz:-18dB Min
40～100MHz:-12+20Log (f/80MHz)]dB Min
5.Crosstalk(dB Min):
1MHz:-50
10～100MHz:-55+22*Log (f/10)
6.Common Mode Rejection Ratio:
2MHz:-50dB Min
30～200MHz:-15+20*Log (f/200)]dB Min
7.Hi-Pot: 1500Vrms @60Hz
8.Operating Temperature: 0℃～70℃.-40℃～+85℃.
