Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: HR911261C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
HR911261C |
Made In China: |
SM-LPJG26806ABNL |
Application: |
Industry Switch |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
Midcom PN: |
HR911261C |
Made In China: |
SM-LPJG26806ABNL |
Application: |
Industry Switch |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
|
HR911261C Hanrun |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
HR911261C |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG26806ABNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

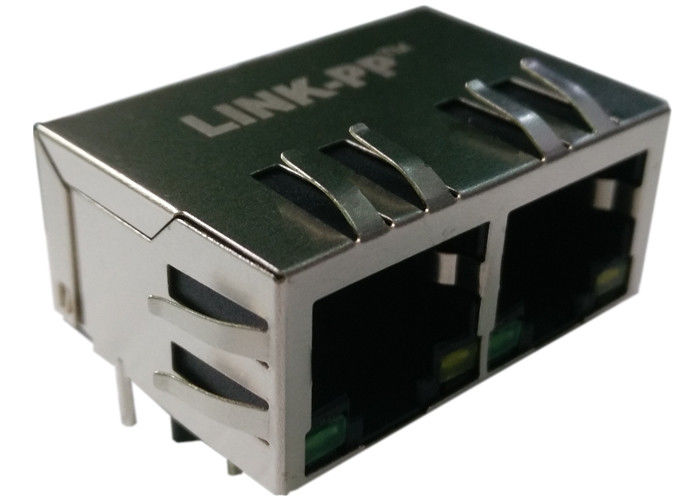

Description |
Gigabit Rj45 Jack Double ports |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
HR911261C ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
1CT∶1CT
2.OCL(100KHz/0.1V @8mA):
350uH MIN
3.Insertion Loss:
-0.8dB MAX @ 1～100MHz
-1.2dB MAX @ 100～120MHz
4.Return Loss:
-18dB MIN @ 1～30MHz
-16dB MIN @ 30～60MHz
-12dB MIN @ 60～80MHz
-10dB MIN @ 80～100MHz
5.Cross talk:
-40dB MIN @ 1～30MHz
-35dB MIN @ 30～60MHz
-30dB MIN @ 60～100MHz
6.Common Mode Rejection:
-40dB MIN @ 1～50MHz
-30dB MIN @ 50～150MHz
7.Hi-Pot:1500Vrms
8.Operating Temperature: 0℃～ 70℃./-40℃～ +85℃.
