LPJG19018CNL Cross 7498111001 SMT RJ45 Connector Built-in 10/100/1000Base-T

China LPJG19018CNL Cross 7498111001 SMT RJ45 Connector Built-in 10/100/1000Base-T supplier

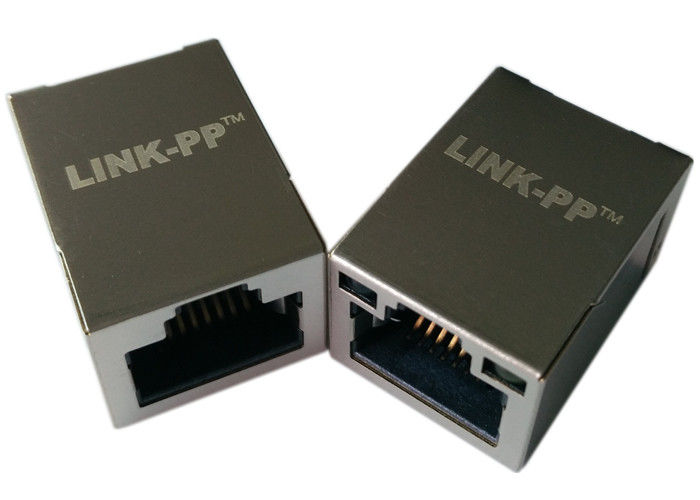

Large Image :  LPJG19018CNL Cross 7498111001 SMT RJ45 Connector Built-in 10/100/1000Base-T

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 7498111001

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive & Competitive
Packaging Details: 50 pcs/tray,24tray /carton/32*30*31 , 9 KG/1200pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
PN: 7498111001 Made In China: SMJ-LPJG19018CNL
Application: 10/100/1000BT SMD Ethernet: Fast Ethernet
Port: 1,2,4 Flexible Hipot: 1500V

LPJG19018CNL Cross 7498111001 SMT RJ45 Connector Built-in 10/100/1000Base-T


7498111001 Jack

Trader Part Number

7498111001

Price Break

Unit Price

Extended Price

1-5

Free

Free

10-50

3.0

-

100-500

2.5

-

1,000-2,500

1.33

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

 Negotiable

Negotiable

100,000

 Negotiable

Negotiable

500,000

 Negotiable

Negotiable

Made in China

SMJ-LPJG19018CNL

Manufacturer

LINK-PP China

Description

10/100/1000 SMD Rj45

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS or 4 weeks



7498111001 Rj45 Electrical Specifications @25℃
Electrical Specifications @25℃
1.Turns Ratio(± 2%):
  TX=1CT:1CT      RX=1CT:1CT
2.OCL: 350uH Min
  @100KHz,100mV,8mA bias current
3.Insertion Loss:
  1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
5.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: -40℃~+85℃

LPJG19018CNL Cross 7498111001 SMT RJ45 Connector Built-in 10/100/1000Base-T
