LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile

China LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile supplier
LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile supplier LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile supplier

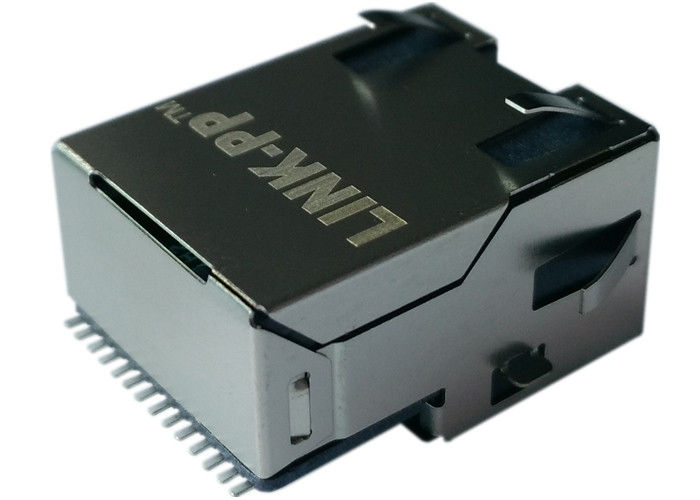

Large Image :  LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: LPJG19661AGNL

Payment & Shipping Terms:

Minimum Order Quantity: 770
Price: Supportive & Competitive
Packaging Details: 110PCS/Reel,7Reels= 770PCS/Carton=10KG=35.5*35.5*35cm
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: 7498111001R [MIC38121-5356R-LF3] Cross PN: LPJG19661AGNL
Application: 10/100/1000BT SMD Ethernet: Gigabit Interface
Family: Low Profile 1000Base-T SMT Rj45 Hipot: 1500V

LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Transformer


Low Profile SMT LPJG19661AGNL

Specification

7498111001R / MIC38121-5356R-LF3

Price Break

Unit Price

Extended Price

1-5

Free

Free

10-50

3.0

-

100-500

C

-

1,000-2,500

A-B2

Supportive

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

 Negotiable

Negotiable

100,000

 Negotiable

Negotiable

500,000

 Negotiable

Negotiable

Mfg Pn

LPJG19661AGNL

Manufacturer

LINK-PP China

Description

10/100/1000 SMD Rj45, Low Profile Jack

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS or 4 weeks



Low Profile Gigabit SMT Rj45 Magjack.


Electrical Specifications @25℃
1.Turns Ratio(± 2%):
  TX=1CT:1CT      RX=1CT:1CT
2.OCL: 350uH Min
  @100KHz,100mV,8mA bias current
3.Insertion Loss:
  1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
5.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: -40℃~+85℃

LPJG19661AGNL Cross 7498111120R Surface Rj45 MIC38121-5356R-LF3 Low Profile
