Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RM3-21JA9U4C
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
RM3-21JA9U4C |
Made In China: |
SM-LPJG17561AHNL |
Application: |
Gigabitl Ethernet Switch |
Shield: |
Shielded EMI |
Port: |
2x1 Stack |
Hipot: |
1500V |
Midcom PN: |
RM3-21JA9U4C |
Made In China: |
SM-LPJG17561AHNL |
Application: |
Gigabitl Ethernet Switch |
Shield: |
Shielded EMI |
Port: |
2x1 Stack |
Hipot: |
1500V |
|
RM3-21JA9U4C UDE |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
RM3-21JA9U4C |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG17561AHNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

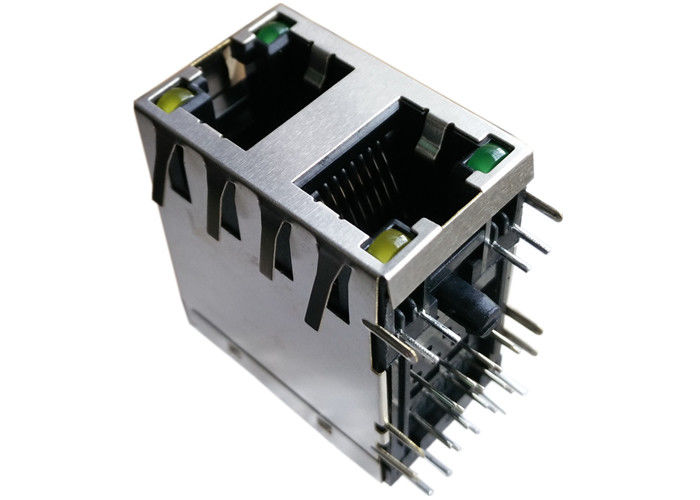

Gigabit Rj45 Jack 2 ports |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
RM3-21JA9U4C Electrical Specifications @25℃
1.Turns Ratio:
PRI:SEC = 1CT:1CT %%P2%P2.OCL:
350uH MIN @ 100KHz,100mV,8mADC
3.Insertion Loss:
1～100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1～30MHz:-18 30～60MHz:-14
60～80MHz:-12
5.Crosstalk(dB TYP):
1～30MHz:-40 30～60MHz:-35
60～80MHz:-30
6.Differential to Common Mode Rejection:
1～50MHz: -30dB TYP
50～150MHz: -20dB TYP
7.CMRR: 1～100MHz:-30dB MIN
8.Isolation: 1500Vrms MIN
9.Operating Temperature Range: -40℃～+85℃.
