Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: F4-14-A012
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
PN: |
F4-14-A012 |
Made In China: |
SM-LPJF0017DNL |
Family: |
Magnetics Rj45 Connector |
Port: |
1x1 |
LEDs: |
Without |
Hipot: |
1500V |
PN: |
F4-14-A012 |
Made In China: |
SM-LPJF0017DNL |
Family: |
Magnetics Rj45 Connector |
Port: |
1x1 |
LEDs: |
Without |
Hipot: |
1500V |
|
F4-14-A012 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
F4-14-A012 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJF0017DNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

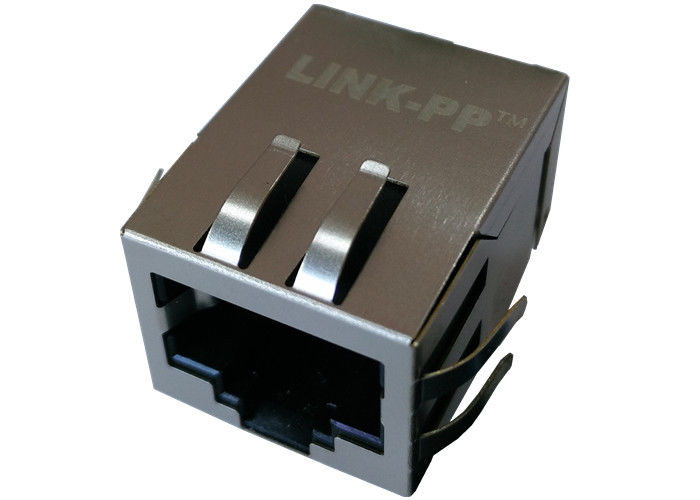

Description |
Rj-45 With Magnetics |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
F4-14-A012 Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@ 100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio(%%P3%):
TX=1CT:1CT RX=1CT:1CT
4.Insertion Loss:
0.1-100MHz:-1.0dB Max
100-125MHz:-1.2dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-[12-20Log(F/80)]
6.Crosstalk(dB Min):
0.1-100MHz:-[33-20Log(F/50)]
7.Common Mode Rejection Ratio:
0.1-100MHz:-32.0 dB Min
8.Hipot: 1500Vrms
9.Operating Temperature:-40℃～+85℃
