Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

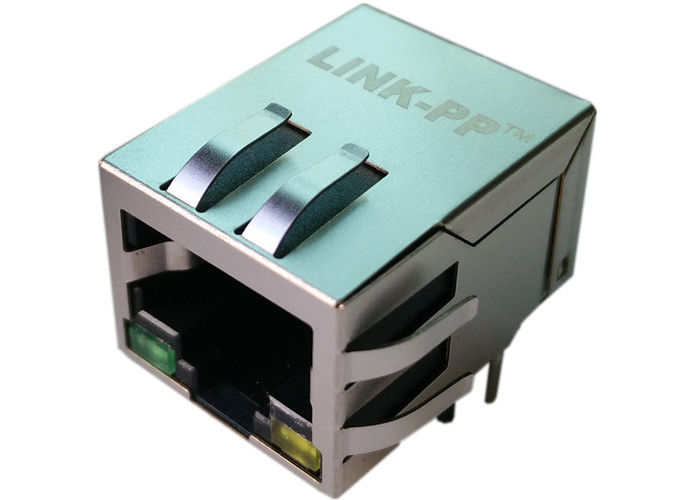

Model Number: MOX-RJ45-2116TU
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
PN: |
MOX-RJ45-2116TU |
Made In China: |
SM-LPJF0012-1AENL |
Family: |
Rj45 With Magnetics Pinout |
Port: |
1x1 |
LEDs: |
Green/Yellow |
Hipot: |
1500V |
PN: |
MOX-RJ45-2116TU |
Made In China: |
SM-LPJF0012-1AENL |
Family: |
Rj45 With Magnetics Pinout |
Port: |
1x1 |
LEDs: |
Green/Yellow |
Hipot: |
1500V |
|
MOX-RJ45-2116TU |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
MOX-RJ45-2116TU |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJF0012-1AENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 With Magnetics Pinout |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
MOX-RJ45-2116TU Electrical Specifications
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test:1500Vrms
8.Operating Temperature Range: 0℃ TO 70℃
