Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: J8064D628A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Midcom PN: |
J8064D628A |
Made In China: |
SM-LPJ26204AENL |
Application: |
10/100Base-TX NIC Applictation |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
Midcom PN: |
J8064D628A |
Made In China: |
SM-LPJ26204AENL |
Application: |
10/100Base-TX NIC Applictation |
Mounting: |
Shielded W/LEDs |
Port: |
Dual |
Hipot: |
1500V |
|
Pulse J8064D628A |
||||||||||||||||||||||||||||||||
|
Designed Part Number |
J8064D628A |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ26204AENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

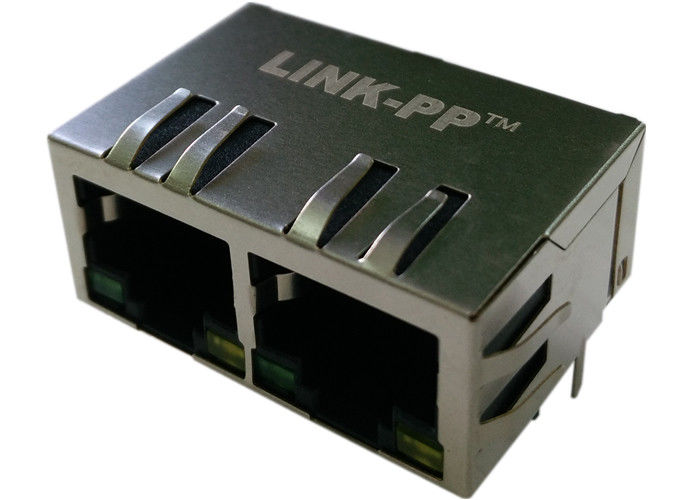

Dual Magnetics Rj45 Connector |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
Features and Benefits:
RoHS “NL” peak solder rating 260°C, non-RoHS peak solder rating 235°C
For RoHS part, add suffix NL 4
RJ45 1xN, Tab-DOWN 8-pin with internal magnetics
Options: 1x2, 1x4, 1x6, and 1x8 for 10/100 Base-TX
Available with and without LEDs
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
Internal magnetics: 100% electrically tested for HI-POT & functionality
Electrical Performance Summary:
Internal magnetics options available
Meets IEEE 802.3 specification
350µH minimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
J8064D628A ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Return Loss(dB Min):
1-10MHz:-18 30MHz:-16
60-100MHz:-12
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz:-1.2dB Max
5.CMR:
1-50MHz:-30dB Min
50-130MHz:-20dB Min
7.Isolation Voltage:1500V
8.Operating Temperature:0-70℃/-40℃～ +85℃.
