Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 1840865-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
1840865-4 |
Made In China: |
SM-LPJ27003-9A4NL |
Application: |
Industry Workgroup Switches |
Shield: |
Shielded EMI |
Port: |
4 Ports Pcb Jack Side Entry |
Hipot: |
1500V |
Midcom PN: |
1840865-4 |
Made In China: |
SM-LPJ27003-9A4NL |
Application: |
Industry Workgroup Switches |
Shield: |
Shielded EMI |
Port: |
4 Ports Pcb Jack Side Entry |
Hipot: |
1500V |
|

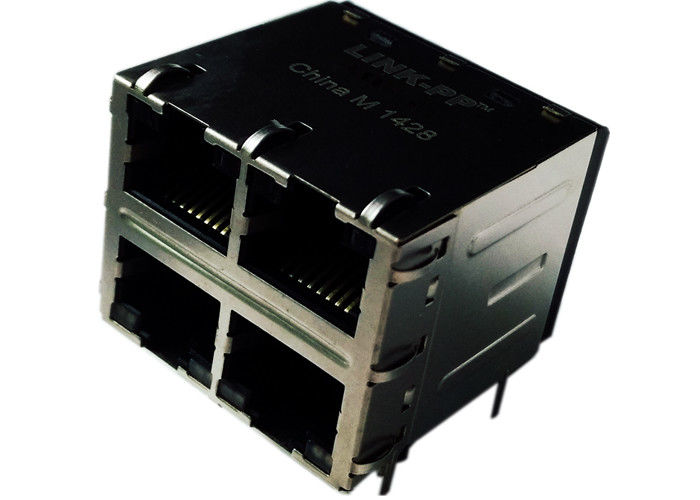

Tyco 1840865-4 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
1840865-4 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ27003-9A4NL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 Stacked Connectors |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
1840865-4 Electrical Specification @25℃
1.Turns Ratio(±2%):
(P1-P3):(J1-J2)=1:1
(P4-P6):(J3-J6)=1:1
2.Inductance: 350uH Min
@0.1V,0.1MHz,8mA DC Bias
3.Insertion Loss:
0.1-100MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18
30-80MHz:-12
5.Crosstalk(dB Typ):
1-100MHz:-40
6.Common to Mode Rejection:
30-100MHz:-35dB Min
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.
