Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 74F-2001GYD3NW2NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
74F-2001GYD3NW2NL |
Made In China: |
SM-LPJ47XXXNL |
Application: |
Industry Ethernet Switches |
Shield: |
Shielded EMI |
Port: |
8 Ports Pcb Jack Side Entry |
Hipot: |
1500V |
Midcom PN: |
74F-2001GYD3NW2NL |
Made In China: |
SM-LPJ47XXXNL |
Application: |
Industry Ethernet Switches |
Shield: |
Shielded EMI |
Port: |
8 Ports Pcb Jack Side Entry |
Hipot: |
1500V |
|
74F-2001GYD3NW2NL YDS |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
74F-2001GYD3NW2NL |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ47XXXNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

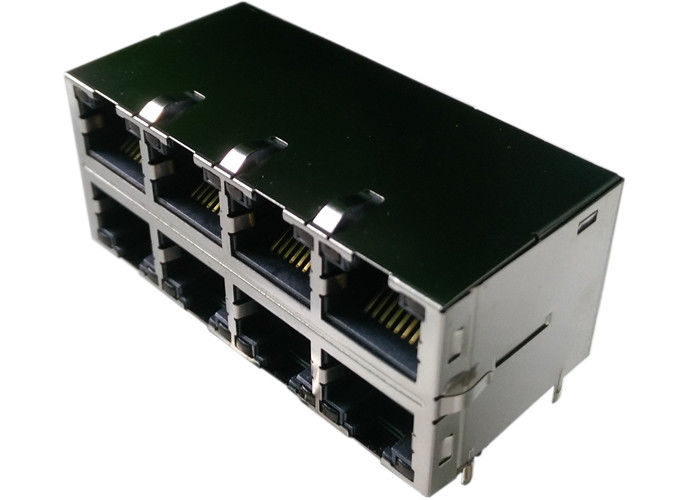

Rj45 Stacked Connectors |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
1. Turns Ratio( ±5%): 1CT:1CT
2. OCL(100KHz/0.1V@8mA):350uH MIN
3. Insertion Loss (dB MAX):-1.0dB(0.3-100MHz)
4. Return Loss(dB TYP): -20dB(1-10MHz),-16dB(30MHz),-12dB(60-80MHz)
5. Crosstalk (dB MIN): -40dB(1-30MHz),-35dB(30-60MHz),-30dB(60-100MHz)
6. CMR(dB MIN): -30dB(1-50MHz),-20dB(50-150MHz)
7. HI-POT(Pri to Sec):1500Vrms
8. Operating Temperature:0℃ TO +70℃
9. RoHS compliance:YES
Mechanicals
Housing Material:
MATERIAL:NYLON Fr52 BK337 STANDARD COLOR:BLACK
Insert Material:
MATERIAL: CONT---0.35mm THICKNESS
PHOS---BRONZE.C5210
INSERT---PBT GF UL94V-0
1.PLATING: NICKEL
2.PLATING: 100%Sn
3.PLATING: GOLD (6u＂～50u＂)
Contact pin Material:
1.NYLON66 GF UL94V-0
2.0.30mm THICKNESS PHOS-BRONZE C5191
3.PLATING 100%SN
Shielding Material:
1.BRASS C2680H PLATING NICKEL
2.PLATING NICKEL
Operating Life : 750 Cycles MIN.
Environmental
1.Storage Temp:-40℃TO +85℃.
2.Operating Temp: 0℃ TO +70℃ ..
3. MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPARTF
