Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: AR11-3686I
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Midcom PN: |
AR11-3686I |
Made In China: |
SM-LPJ4186GENL |
Application: |
Embedded Computing |
Category: |
Rj45 Magnetics |
Port: |
Single With LEDs |
Samples: |
Available |
Midcom PN: |
AR11-3686I |
Made In China: |
SM-LPJ4186GENL |
Application: |
Embedded Computing |
Category: |
Rj45 Magnetics |
Port: |
Single With LEDs |
Samples: |
Available |
|
AR11-3686I ALLIED |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
AR11-3686I |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ4186GENL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

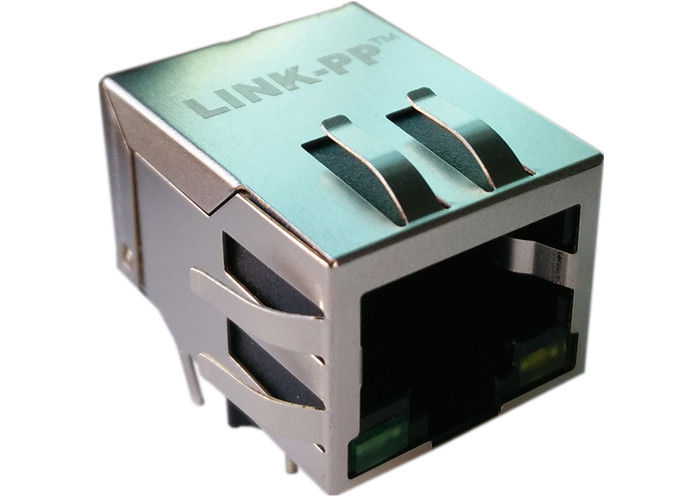

Single Port Rj45 Connector |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
AR11-3686I Electrical Specifications
10/100 Base-T Ethernet Application
Impedance: 100OHMS
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Available in other Circuit Designs
Industrial Operating Temp: -40ºC to +85ºC
Contact Factory for Standard Temp.
AR11-3686I
Optional Gold Plating Thickness
Other LED Patterns available
1. Shield- 0.20mm THICKNESS BRASS C2680 H.
PLATING NICKEL 30u"-50u"
2. Housing- Standard Material Nylon66, Glass filled
Polyester UL94V-0 Standard Color Black.
3. RJ Terminal- Plastic: Nylon 66, UL94V-0, Standard
Color Black.
Pin: 0.35mm Thickness Phos-Bronze C5210 EH.
Plating: Nickel 40u"-60u" for all and Sn 100%, and
6u” Gold Plating.
4. Input Terminal: Nylon66, Glass Filled, UL94V-0,
Standard Color Black.
Pin: 0.35mm Thickness Phos-Bronze C2680.
Plating: Nickel 40u"-60u" for all and Sn 100%.
