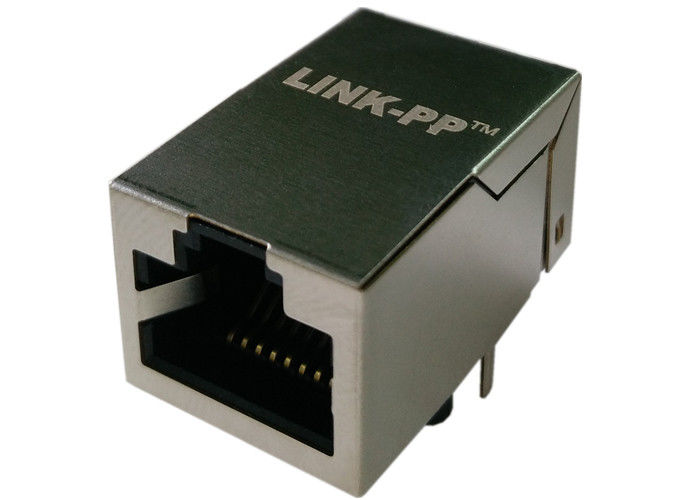

100 Base-TX RJ45 JXR1-0005NL Tab-Up 8 pin Integrated Magnetics Connector

Name: 100 Base-TX RJ45 JXR1-0005NL Tab-Up 8 pin Integrated Magnetics Connector
Brand: LINK-PP
SKU: JXR1-0005NL
Price: 0.09 USD
Availability: InStock
Rating: 5 (148 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JXR1-0005NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Midcom PN:	JXR1-0005NL	Made In China:	SM-LPJ6011DNL
Application:	10/100BT	Category:	Rj45 Magnetics
Port:	Single	Samples:	Available

Midcom PN:	JXR1-0005NL
Made In China:	SM-LPJ6011DNL
Application:	10/100BT
Category:	Rj45 Magnetics
Port:	Single
Samples:	Available

100 Base-TX RJ45 JXR1-0005NL Tab-Up 8 pin Integrated Magnetics Connector

JXR1-0005NL PulseJack

Trader Part Number

JXR1-0005NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ6011DNL

Manufacturer

LINK-PP China

Description

Rj45 8 pin Integrated Magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

JXR1-0005NL Electrical Specifications

1.TR:(100KHz,0.1V);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.OCL:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P2),(P7,P8)=350uH MIN
3.HIPOT:
PINS(P1,P3,P2)TO (J1,J2)=1500VAC FOR 60 SECONDS
PINS(P7,P6,P8)TO (J3,J6)=1500VAC FOR 60 SECONDS
4.INSERTION LOSS:
-1.0dB MAX @ 0.3MHz TO 100MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz TO 50MHz
-20dB MIN @ 50MHz TO 150MHz
8.OPERATING TEMPERATURE: -40℃～+85℃.
