Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JXR1-0001NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Midcom PN: |
JXR1-0001NL |
Made In China: |
SM-LPJ6011CNL |
Family: |
10/100Mbps |
Category: |
Rj-45 With Magnetics |
Orientation: |
Up |
Samples: |
3-5 Free Available |
Midcom PN: |
JXR1-0001NL |
Made In China: |
SM-LPJ6011CNL |
Family: |
10/100Mbps |
Category: |
Rj-45 With Magnetics |
Orientation: |
Up |
Samples: |
3-5 Free Available |
|

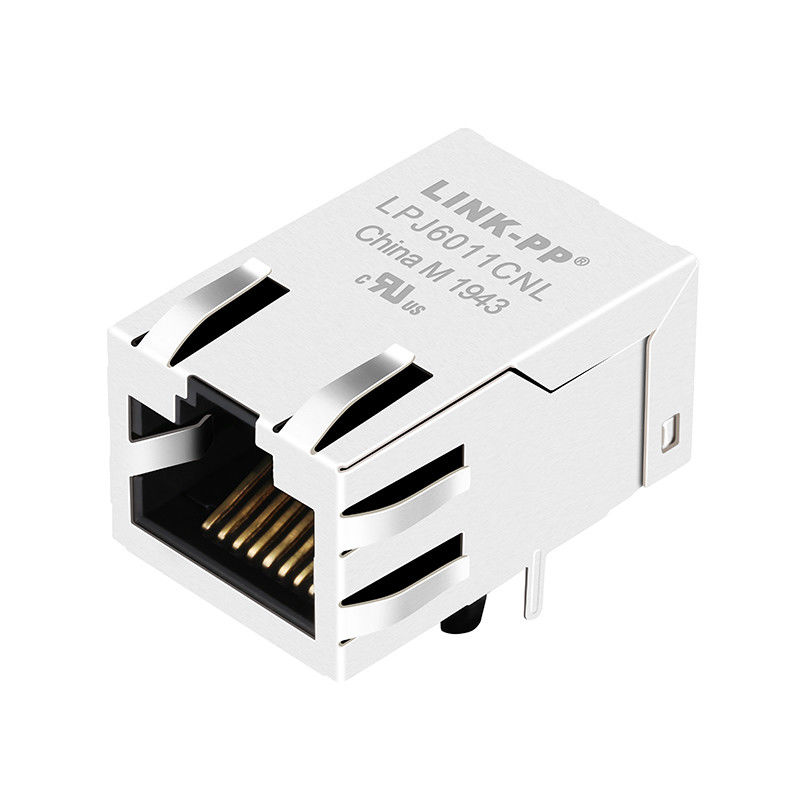

JXR1-0001NL PulseJack
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
JXR1-0001NL
|
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China
|
SM-LPJ6011CNL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|
Rj-45 Integrated Transformers
|
|||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
2,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
1.TR:(100KHz,0.1V);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.OCL:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P2),(P7,P8)=350uH MIN
3.HIPOT:
PINS(P1,P3,P2)TO (J1,J2)=1500VAC FOR 60 SECONDS
PINS(P7,P6,P8)TO (J3,J6)=1500VAC FOR 60 SECONDS
4.INSERTION LOSS:
-1.0dB MAX @ 0.3MHz TO 100MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz TO 50MHz
-20dB MIN @ 50MHz TO 150MHz
8.OPERATING TEMPERATURE: -40℃～+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
