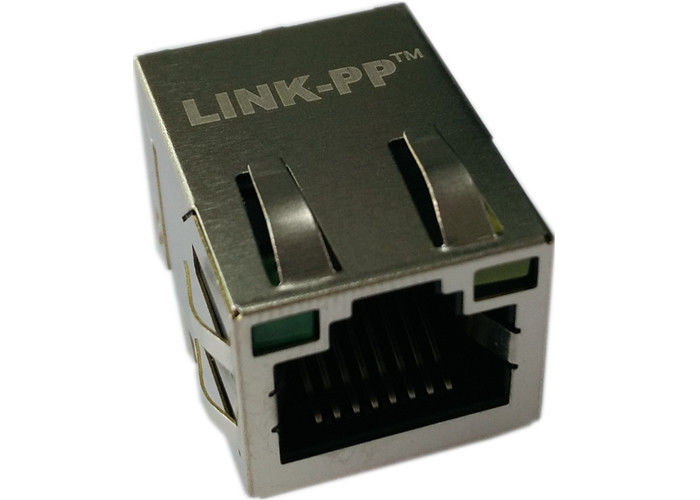

TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface

TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface
TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface

Large Image :  TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 6-6605748-1
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Midcom PN: 6-6605748-1 Made In China: SM-LPJ16XXXNL
Application: 10/100BT Category: Mag45 Jack
Hipot: 1500V Samples: Available
High Light:

modular jacks rj45

,

industrial rj45 connector

TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface


6-6605748-1
Trader Part Number
6-6605748-1
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ16XXXNL
Manufacturer
LINK-PP China
Description
Rj45 8 pin Integrated Magnetics
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks

6-6605748-1 Electrical Specifications



Electrical Specifications @25℃
1.Turns Ratio(±2%):
  TX=1CT:1CT        RX=1CT:1CT
2.Primary Inductance(1-2, 5-6): 350uH Min
  @100KHz,0.1Vrms,8mA DC bias
3.Insertion Loss:
  0.5-100MHz: -1.1dB Max
4.Return Loss(dB Min):
  0.5-30MHz:-18;
  30.1-60MHz:-[18-20LOG(f/30)]
  60.1-80MHz:-12
5.Crosstalk(dB Min):
  0.5-40MHz: -35
  40.1-100MHz: -[33-20LOG(f/50)]
6.Common Mode Rejection Ratio:
  0.5-100MHz: -30dB Min
7.Hipot Test: 1500Vrms
8.Operating Temperature: 0℃～70℃.

 TE RJ45 Modular Jack 6-6605748-1 Shield With LEDs 10/100Mbps Interface 0
