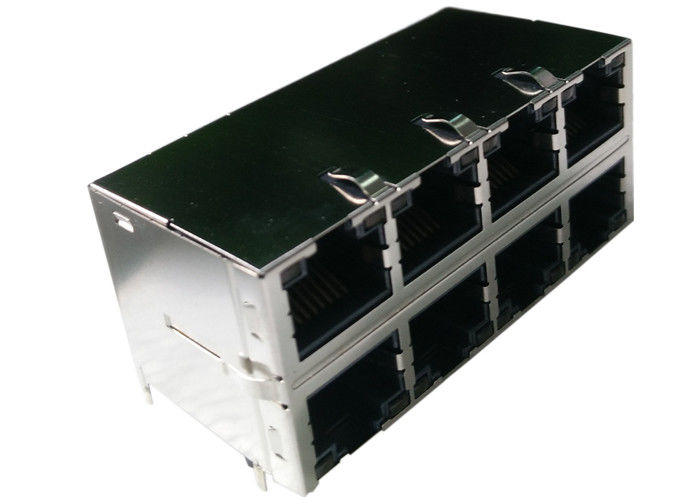

Stacked RJ45 Molex 85735-1006 Gigabit Magnetic Jack POE Plus Enabled 2x4 LED

Name: Stacked RJ45 Molex 85735-1006 Gigabit Magnetic Jack POE Plus Enabled 2x4 LED
Brand: LINK-PP
SKU: 85735-1006
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (119 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 85735-1006

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Midcom PN:	85735-1006	Made In China:	SM-LPJ47XXXNL
Application:	Industry Power Switches	Family:	POE+ Magnetic Rj45
Port:	8 Ports Pcb Jack Side Entry	Hipot:	1500V

Midcom PN:	85735-1006
Made In China:	SM-LPJ47XXXNL
Application:	Industry Power Switches
Family:	POE+ Magnetic Rj45
Port:	8 Ports Pcb Jack Side Entry
Hipot:	1500V

Stacked RJ45 Molex 85735-1006 Gigabit Magnetic Jack POE Plus Enabled 2x4 LED

Molex 85735-1006

Trader Part Number

85735-1006

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ47XXXNL

Manufacturer

LINK-PP China

Description

Rj45 Stacked POE

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

Molex 85735-1006

1. Turns Ratio( ±5%): 1CT:1CT
2. OCL(100KHz/0.1V@8mA):350uH MIN
3. Insertion Loss (dB MAX):-1.0dB(0.3-100MHz)
4. Return Loss(dB TYP): -20dB(1-10MHz),-16dB(30MHz),-12dB(60-80MHz)
5. Crosstalk (dB MIN): -40dB(1-30MHz),-35dB(30-60MHz),-30dB(60-100MHz)
6. CMR(dB MIN): -30dB(1-50MHz),-20dB(50-150MHz)
7. HI-POT(Pri to Sec):1500Vrms
8. Operating Temperature:0℃ TO +70℃
9. RoHS compliance:YES

Mechanicals
Housing Material:
MATERIAL:NYLON Fr52 BK337 STANDARD COLOR:BLACK
Insert Material:
MATERIAL: CONT---0.35mm THICKNESS
PHOS---BRONZE.C5210
INSERT---PBT GF UL94V-0
1.PLATING: NICKEL
2.PLATING: 100%Sn
3.PLATING: GOLD (6u＂～50u＂)
Contact pin Material:
1.NYLON66 GF UL94V-0
2.0.30mm THICKNESS PHOS-BRONZE C5191
3.PLATING 100%SN
Shielding Material:
1.BRASS C2680H PLATING NICKEL
2.PLATING NICKEL
Operating Life : 750 Cycles MIN.
Environmental
1.Storage Temp:-40℃TO +85℃.
2.Operating Temp: 0℃ TO +70℃ ..
3. MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPARTF
