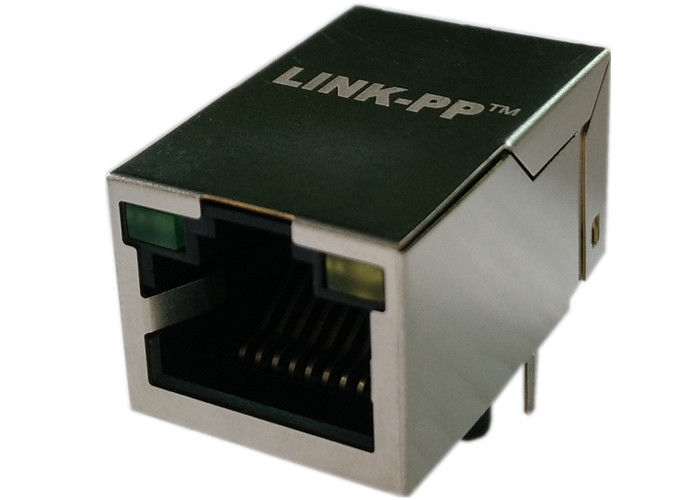

Bel Stewart Connector SI-50161-F RJ45 With Integrated Magnetics

Name: Bel Stewart Connector SI-50161-F RJ45 With Integrated Magnetics
Brand: LINK-PP
SKU: SI-50161-F
Rating: 4.9 (146 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: SI-50161-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive & Competitive

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Midcom PN:	SI-50161-F	Made In China:	SM-LPJ10XXBNL
Family:	10/100Mbps	Category:	Rj-45 Magjack
Orientation:	Up	Samples:	3-5 Free Available

Midcom PN:	SI-50161-F
Made In China:	SM-LPJ10XXBNL
Family:	10/100Mbps
Category:	Rj-45 Magjack
Orientation:	Up
Samples:	3-5 Free Available

Bel Stewart Connector SI-50161-F RJ45 With Integrated Magnetics

SI-50161-F BelJack

Trader Part Number

SI-50161-F

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ10XXBNL

Manufacturer

LINK-PP China

Description

Rj-45 Integrated Transformers

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

SI-50161-F Electrical Specifications

TEST NOTES(25±5℃)
1.TR:(100KHz,100mV);
TX=1CT∶1CT ±3% RX=1CT∶1CT ±3%P2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.

Bel Stewart Connector SI-50161-F RJ45 With Integrated Magnetics 0
