Home > products > Magnetic RJ45 Jack > Modular Magnetic Jack SI-60073-F Ip68 Rj45 Right Angle PCB Connector

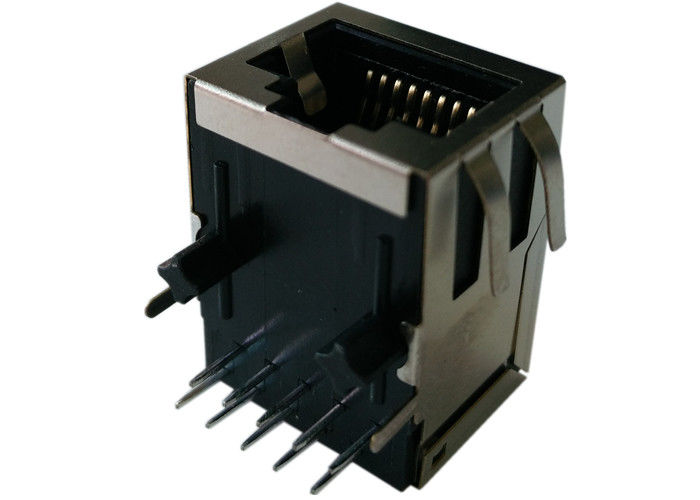

Modular Magnetic Jack SI-60073-F Ip68 Rj45 Right Angle PCB Connector

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: SI-60073-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Midcom PN:
SI-60073-F
Made In China:
SM-LPJ00XXCNL
Family:
10/100Mbps
Category:
Angled Rj45 Connector
Orientation:
Up
Samples:
Active
Midcom PN:
SI-60073-F
Made In China:
SM-LPJ00XXCNL
Family:
10/100Mbps
Category:
Angled Rj45 Connector
Orientation:
Up
Samples:
Active
Modular Magnetic Jack SI-60073-F Ip68 Rj45 Right Angle PCB Connector

Modular Magnetic Jack SI-60073-F Ip68 Rj45 Right Angle PCB Connector



Belfuse SI-60073-F
Trader Part Number
SI-60073-F
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ00XXCNL
Manufacturer
LINK-PP China
Description
Rj-45 Integrated Transformers
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



SI-60073-F ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  TX=1CT:1         RX=1CT:1
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.Operating Temperature Range:0℃ TO 70℃
