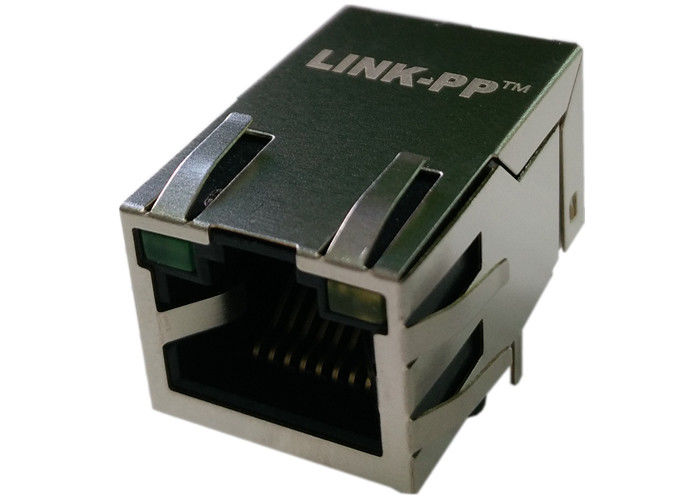

08B0-1D1T-36-F RJ45 With Integrated Magnetics Right Angle Ethernet Connector

Name: 08B0-1D1T-36-F RJ45 With Integrated Magnetics Right Angle Ethernet Connector
Brand: LINK-PP
SKU: 08B0-1D1T-36-F
Rating: 4.8 (188 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 08B0-1D1T-36-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive & Competitive

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Midcom PN:	08B0-1D1T-36-F	Made In China:	SM-LPJ2011KGNL
Family:	10/100Baset	Category:	Magnetics Rj45 Modular Jack
Mounting:	Thru-hole	Samples:	5PCS Available

Midcom PN:	08B0-1D1T-36-F
Made In China:	SM-LPJ2011KGNL
Family:	10/100Baset
Category:	Magnetics Rj45 Modular Jack
Mounting:	Thru-hole
Samples:	5PCS Available

08B0-1D1T-36-F RJ45 With Integrated Magnetics Right Angle Ethernet Connector

Rj45 08B0-1D1T-36-F BelFuse

Trader Part Number

08B0-1D1T-36-F

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ2011KGNL

Manufacturer

LINK-PP China

Description

Rj45 Connector with magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

08B0-1D1T-36-F ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Inductance(100KHz/0.1V@8mA):
350uH MIN
3.Insertion Loss:
0.1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz:-20
30-60MHz:-15
60-80MHz:-10
5.Crosstalk(dB MIN):
1-30MHz:-20
30-60MHz:-15
60-100MHz:-30
6.Common To Common Mode Rejection:
1-100MHz:-30dB MIN
7.Hi-Pot: 1500VAC FOR 60 SECONDS MIN
8.Operating Temperature Range: 0℃～70℃.

08B0-1D1T-36-F RJ45 With Integrated Magnetics Right Angle Ethernet Connector 0
