Tyco 1840445-1 MAG45 Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe

Tyco 1840445-1 MAG45 Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe
Tyco 1840445-1 MAG45 Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe Tyco 1840445-1 MAG45 Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe

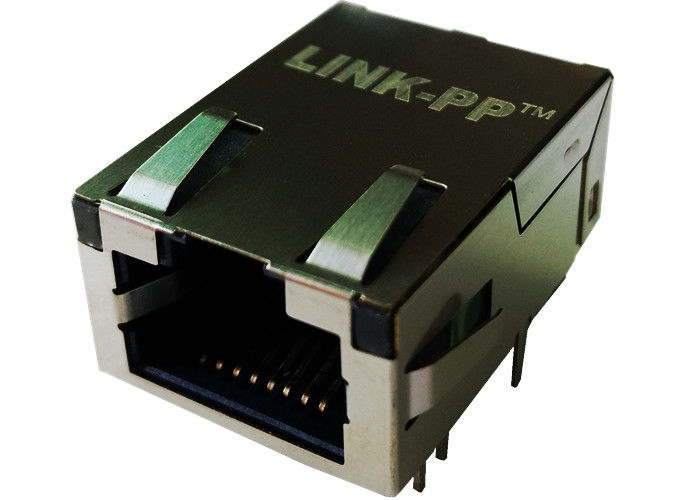

Large Image :  Tyco 1840445-1 MAG45 Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 1840445-1/2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Customer PN: 1840445-1/2 Made In China: SM-LPJ700XANL
Family: 10/100Baset Category: 10/100 Circuit Rj45
LED: Green With 250 OHMS Resistor Samples: Stock Available
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

Tyco 1840445-1 MAG45  Modular Jack 10/100 Circuit SHIELD 1840445-1 Light Pipe



TE Connector 1840445-1/2
Trader Part Number
1-6605758-1 Rj45
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ700XANL
Manufacturer
LINK-PP China
Description
Rj45 Connector with magnetics
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



Tyco 1840445-1 ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
  TX=1CT:1CT        RX=1CT:1CT
2.Primary Inductance(1-2, 5-6): 350uH min
  @100KHz,0.1Vrms,8mA DC bias
3.Insertion Loss:
  0.5-100MHz: -1.1dB Max
4.Return Loss(dB Min):
  0.5-30MHz:-18;
  30.1-60MHz:-[18-20LOG(f/30)]
  60.1-80MHz:-12
5.Crosstalk(dB Min):
  0.5-40MHz: -35
  40.1-100MHz: -[33-20LOG(f/50)]
6.Common Mode Rejection Ratio:
  0.5-100MHz: -30dB Min
7.Hipot Test: 1500Vrms
8.Operating Temperature: 0℃～70℃.



Tag:

industrial rj45 connector,

rj-45 ethernet jack,

modular jacks rj45
