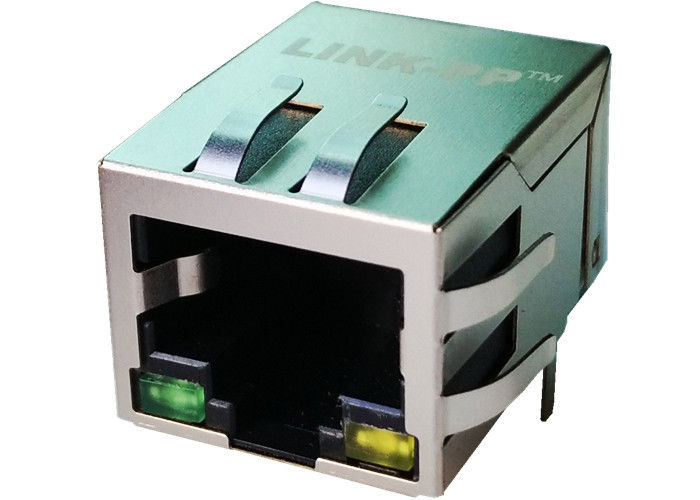

Rj45 With Magnetics 5-6605301-1 10/100 Ethernet Schematic Shielded With Leds

Name: Rj45 With Magnetics 5-6605301-1 10/100 Ethernet Schematic Shielded With Leds
Brand: LINK-PP
SKU: 5-6605301-1
Rating: 4.8 (160 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 5-6605301-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Midcom PN:	5-6605301-1	Made In China:	SM-LPJ00XXABNL
Family:	Rj45 Female Connector	Interface:	10/100Mbps
LED:	Design Flexible	Samples:	Available

Midcom PN:	5-6605301-1
Made In China:	SM-LPJ00XXABNL
Family:	Rj45 Female Connector
Interface:	10/100Mbps
LED:	Design Flexible
Samples:	Available

Rj45 With Magnetics 5-6605301-1 10/100 Ethernet Schematic Shielded With Leds

5-6605301-1

Trader Part Number

5-6605301-1 Rj45

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ00XXABNL

Manufacturer

LINK-PP China

Description

Gigabit Ethernet Connector

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

5-6605301-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
(P1-P2):(J1-J2)=1:1
(P7-P8):(J3-J6)=1:1
2.Inductance:
(P1-P2): 350uH MIN @100KHz 0.1V,8mA DC Bias
(P7-P8): 350uH MIN @100KHz 0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.1-80MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-12dB MIN @ 30-80MHz
5.Cross talk:
-35dB TYP @ 0.1-100MHz
6.Common To Common Mode Attenuation:
-30dB TYP @ 30-100MHz
7.Hipot Test: 1500VAC
8.Operating Temperature Range: 0℃ TO 70℃
