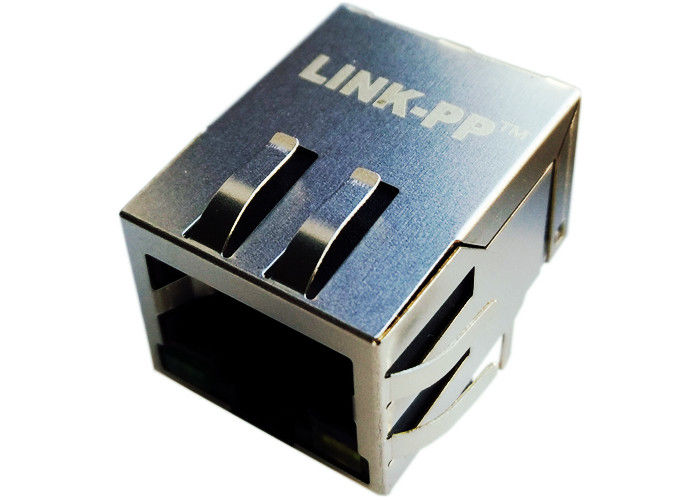

1X1 Jack 5-6605414-7 MAG45 Modular Jack Schematic MAGNETIC Circuit,Shielded

Name: 1X1 Jack 5-6605414-7 MAG45 Modular Jack Schematic MAGNETIC Circuit,Shielded
Brand: LINK-PP
SKU: 5-6605414-7
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (179 reviews)

Large Image : 1X1 Jack 5-6605414-7 MAG45 Modular Jack Schematic MAGNETIC Circuit,Shielded

Product Details:

Place of Origin:	China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	5-6605414-7

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.05-$1.28
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	4200K-PCS/Month

Contact Now

Detailed Product Description

PN#:	5-6605414-7	Made In China:	SM-LPJ00XXABNL
Family:	Rj45 Female Jack	Interface:	10/100Mbps
LED:	Flexible	Samples:	Available Free
High Light:	modular jacks rj45 , industrial rj45 connector

1X1 Jack 5-6605414-7 MAG45 Modular Jack Schematic MAGNETIC Circuit,Shielded

Tyco 5-6605414-7

Trader Part Number

5-6605414-7 Rj45

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ00XXABNL

Manufacturer

LINK-PP China

Description

Gigabit Ethernet Connector

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

5-6605414-7 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
(P1-P2):(J1-J2)=1:1
(P7-P8):(J3-J6)=1:1
2.Inductance:
(P1-P2): 350uH MIN @100KHz 0.1V,8mA DC Bias
(P7-P8): 350uH MIN @100KHz 0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.1-80MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-12dB MIN @ 30-80MHz
5.Cross talk:
-35dB TYP @ 0.1-100MHz
6.Common To Common Mode Attenuation:
-30dB TYP @ 30-100MHz
7.Hipot Test: 1500VAC
8.Operating Temperature Range: 0℃ TO 70℃

Tag:

Contact Person: Factory Sales Team

Tel: 86-752-3322915
