Quad Port JG0-0098NL PulseJack 1x4 Gigabyte Mag45 Shield With LEDs

Name: Quad Port JG0-0098NL PulseJack 1x4 Gigabyte Mag45 Shield With LEDs
Brand: LINK-PP
SKU: JG0-0098NL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (199 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: JG0-0098NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, modular jacks rj45


Midcom PN:	JG0-0098NL	Made In China:	SM-LPJG48837A31NL
Family:	Gigabyte Interface	Port:	Quad
LED:	Flexible	Samples:	Stock Available

Midcom PN:	JG0-0098NL
Made In China:	SM-LPJG48837A31NL
Family:	Gigabyte Interface
Port:	Quad
LED:	Flexible
Samples:	Stock Available

Quad Port JG0-0098NL PulseJack 1x4 Gigabyte Mag45 Shield With LEDs

JG0-0098NL Pulse Rj45

Trader Part Number

JG0-0098NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJG48837A31NL

Manufacturer

LINK-PP China

Description

Rj45 Connector with magnetics

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

JG0-0098NL ELECTRICAL SPECFICATIONS @25℃
1.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
2.Insertion Loss:
0.5～100MHz:-1.1dB MAX
3.Return Loss:
0.5～40MHz:-18dB MIN
40.1～100MHz:-12-20LOG(f/80)dB MIN.
4.Crosstalk:
0.5～40MHz:-35dB MIN
40.1～100MHz:-33-20LOG(f/50)dB MIN.
5.Common Mode Rejection Ratio:
0.5～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
7.Operating Temperature: 0℃ TO +70℃.

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3ab specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max

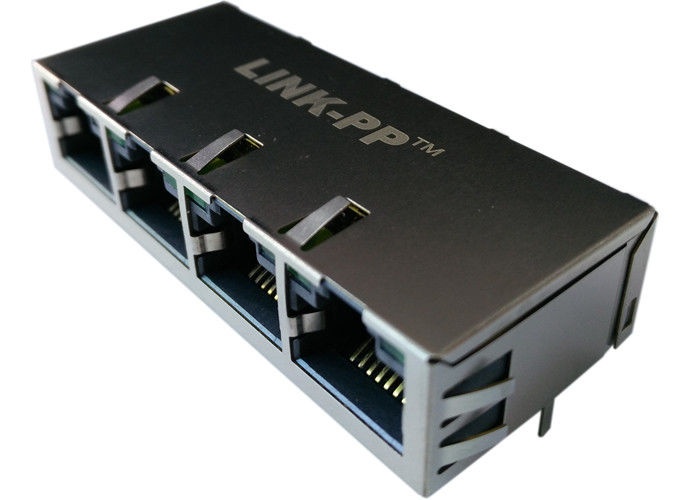

Quad Port JG0-0098NL PulseJack 1x4 Gigabyte Mag45 Shield With LEDs 0

Quad Port JG0-0098NL PulseJack 1x4 Gigabyte Mag45 Shield With LEDs 1
