Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 08AP-2x1R-Y6
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
PN#: |
08AP-2x1R-Y6 |
Made In China: |
SM-LPJG17039A61NL |
Interface: |
10/100/1000Base-T |
Category: |
Rj45 With Transformer |
Port: |
2x1 Stack |
Samples: |
Available |
PN#: |
08AP-2x1R-Y6 |
Made In China: |
SM-LPJG17039A61NL |
Interface: |
10/100/1000Base-T |
Category: |
Rj45 With Transformer |
Port: |
2x1 Stack |
Samples: |
Available |
|

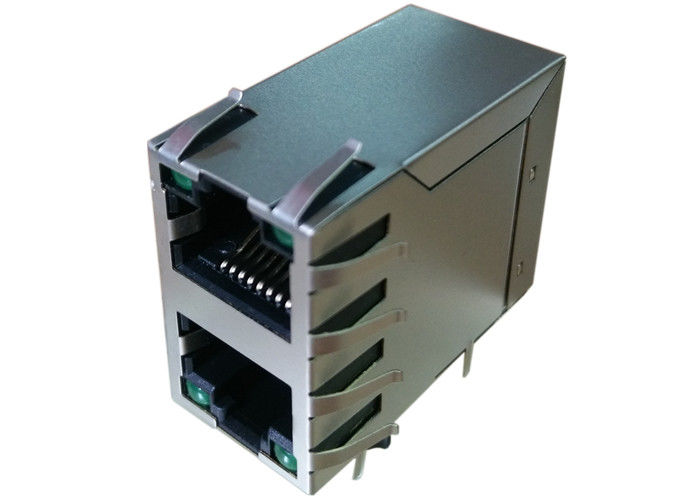

0854-2X8R-66-F Gigabyte Magjack
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
08AP-2x1R-Y6
|
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China
|
SM-LPJG17039A61NL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|
Rj-45 Gigabit Ethernet
|
|||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
200,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
2.Turns Ratio: 1CT∶1CT ±2%P3.Insertion Loss:
0.1～1MHz:-1.1dB Max
1～65MHz:-0.5dB Max
65～100MHz:-0.8dB Max
100～125MHz:-1.2dB Max
4.Return Loss(dB Min):
0.5～40MHz:-18
40～100MHz:-[12+20Log(f/80MHz)]
5.Crosstalk:
0.1～100MHz:-30dB Min
6.CM TO CM REJ:
0.1～100MHz:-30dB Min
7.CM TO DM REJ:
0.1～100MHz:-35dB Min
8.Hi-Pot: 1500Vrms @60Hz
9.Operating Temperature: -40℃～+85℃.
