MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED

MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED
MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED

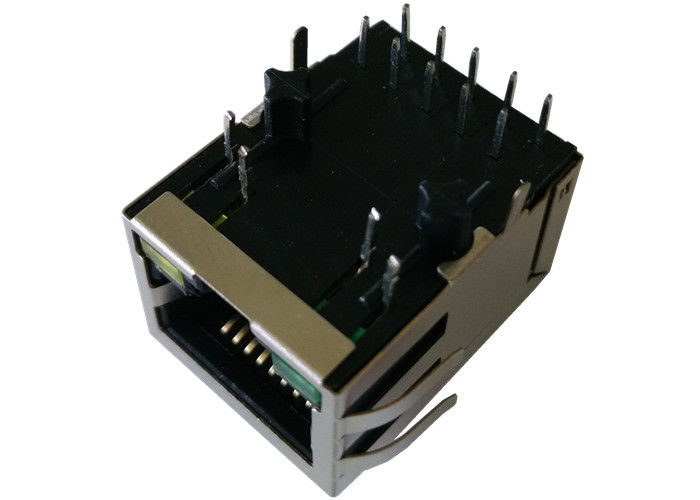

Large Image :  MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 5-6605435-6
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
TE PN#: 5-6605435-6 Made In China: SM-LPJG0XXXGENL
Family: Rj-45 Magnetics Jack Interface: 10/100/1000 Lan
LED: Flexible Designed Samples: Available Free
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED



Rj45 5-6605435-6
Trader Part Number
5-6605435-6 Tyco
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJG0XXXGENL
Manufacturer
LINK-PP China
Description
 Conector Modular 10 vias
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



Tyco 5-6605435-6 ELECTRICAL SPECFICATIONS @25℃
1.Inductance:
  350uH min, 100KHz, 100mV, 8mADC,
  J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min):
  1-40MHz:-18      40-60MHz:-14
  60-80MHz:-12     80-100MHz:-10
3.Crosstalk:
  1-100MHz:-30dB Min
4.Insertion Loss:
  1-100MHz:-1.0dB Max
5.CMR:
  1-100MHz:-35dB Min
6.Turns Ratio:
  1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.

MAG45 Modular Jack 10 Position 5-6605435-6 Gigabyte Magnetic W/LED 0
