RJ45 Single Port 5-6605748-1 Magjack 10/100Base-T Interface Tab-up With LED

Name: RJ45 Single Port 5-6605748-1 Magjack 10/100Base-T Interface Tab-up With LED
Brand: LINK-PP
SKU: 5-6605748-1
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (153 reviews)

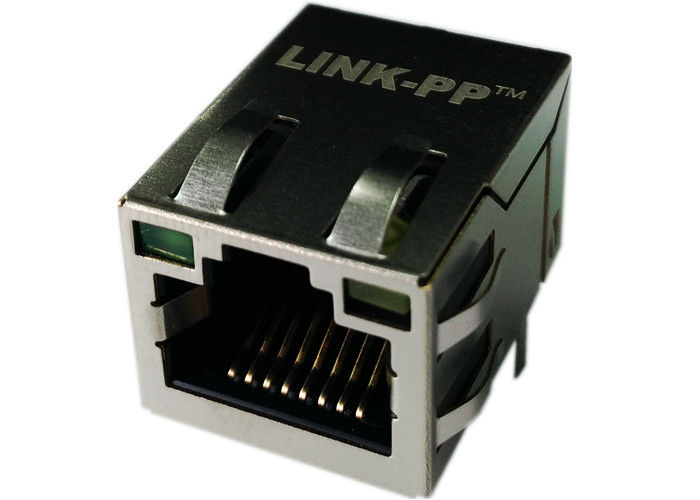

Large Image : RJ45 Single Port 5-6605748-1 Magjack 10/100Base-T Interface Tab-up With LED

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	LINK-PP
Certification:	UL,ROHS,Reach,ISO
Model Number:	5-6605748-1

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	50pcs/tray,1200pcs/carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	250000-320000/Month

Contact Now

Detailed Product Description

Designe PN#:	5-6605748-1	Made In China:	SM-LPJG0XXXGENL
Family:	Rj45 Fast Jack	Interface:	10/100Mbps
LED:	Green&Yellow	Samples:	Available
High Light:	single port rj45 , rj45 smd connector

RJ45 Single Port 5-6605748-1 Magjack 10/100Base-T Interface Tab-up With LED

5-6605748-1

Trader Part Number

5-6605748-1

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJG0XXXGENL

Manufacturer

LINK-PP China

Description

RJ45 Single Port

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

RJ45 Single Port 5-6605748-1 ELECTRICAL SPECFICATIONS @25℃
1.Inductance:
350uH min, 100KHz, 100mV, 8mADC,
J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min):
1-40MHz:-18 40-60MHz:-14
60-80MHz:-12 80-100MHz:-10
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz:-1.0dB Max
5.CMR:
1-100MHz:-35dB Min
6.Turns Ratio:
1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.

RJ45 Single Port 5-6605748-1 Magjack 10/100Base-T Interface Tab-up With LED 0
