1X2 MAG45 5-6610163-5 Modular Jack 10/100Mbps Magnetic Circuit

Name: 1X2 MAG45 5-6610163-5 Modular Jack 10/100Mbps Magnetic Circuit
Brand: LINK-PP
SKU: 5-6610163-5
Price: 0.11 USD
Availability: InStock
Rating: 4.9 (161 reviews)

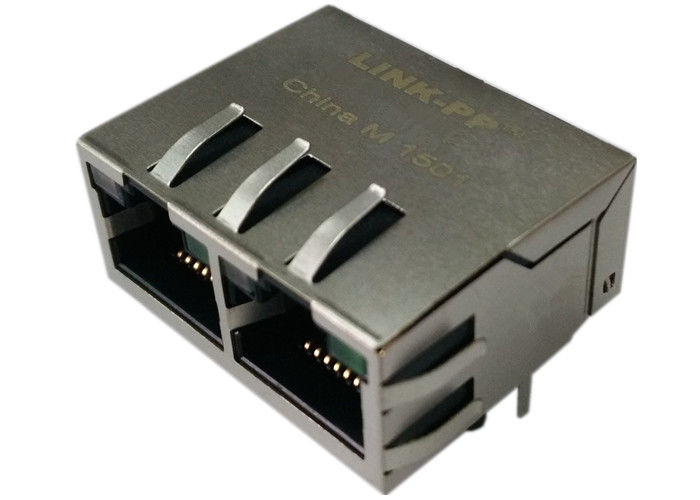

Large Image : 1X2 MAG45 5-6610163-5 Modular Jack 10/100Mbps Magnetic Circuit

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	ISO9001,SGS,UL,CE,REACH163
Model Number:	5-6610163-5

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.11-$12
Packaging Details:	Tray
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	208K/Month

Contact Now

Detailed Product Description

Designe PN#:	5-6610163-5	Made In China:	SM-LPJ2XXXXANL
Family:	Rj45 Dual Port	Interface:	10/100Mbps
LED:	Green,Yellow	Samples:	Supportive
High Light:	multi port connector , dual rj45 jack

1X2 MAG45 5-6610163-5 Modular Jack 10/100Mbps Magnetic Circuit

5-6610163-5

Trader Part Number

5-6610163-5

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ2XXXXANL

Manufacturer

LINK-PP China

Description

5Port RJ45 100M

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

5-6610163-5 ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
0.3-65MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18 40MHz:-16
50MHz:-14 60-80MHz:-12
5.Crosstalk:
0.3-80MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature Range: 0℃-70℃./-40℃-+85℃
