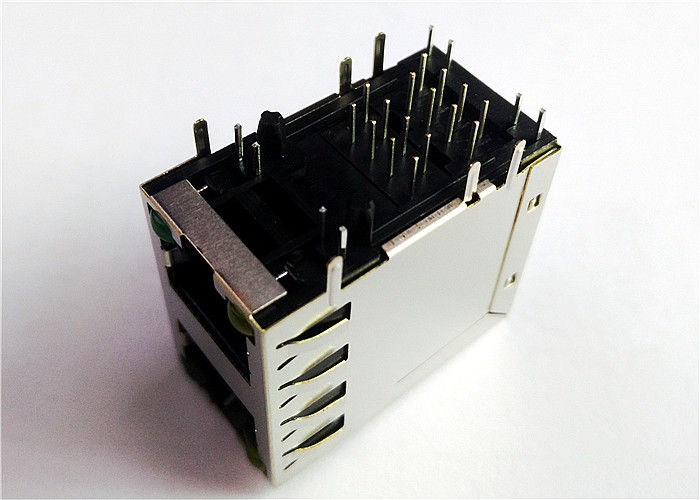

6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5

6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5
6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5 6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5 6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5 6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5

Large Image :  6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 6368011-1
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Contact Now
Detailed Product Description
Specifications: 6368011-1 Made In China: LPJE17200ADNL
Category: Cat5 Mounting: Thru-hole
LED: Green/Yellow Flexible Samples: Supportive
High Light:

stacked rj45 connectors

,

modular jacks rj45

6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5



Rj45 6368011-1 Equivalent
Trader Part Number
6368011-1
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
LPJE17200-XADNL
Manufacturer
LINK-PP China
Description
 Stacked 2 Ports
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



6368011-1 ELECTRICAL SPECFICATIONS @25℃   NOTES:
MATERIAL:
  1.HOUSING MATERIAL  :GLASS FILLED POL YESTER UL94V-O.
  2.CONTACT MATERIAL  :PHISPHOR B RONZE %%C0.46MM.
  3.PLATING           :GOLD PLATING OVER NICKEL.
  4.SHIEL     :0.23 THICKNESS COPPER ALLOY WITH NICKEL PLATED.
  5.LED               :OPTION.
ELECTRICAL:
  1.VOLTAGE RATING    :125 VAC RMS.
  2.CURRENT RATING    :1.5 AMP.
  3.CONTACT RESISTANCE:50 MILLIOHMS MAX.
  4.INSULATION RESISTANCE:500 MEGOHMS MIN @ 500V DC.
  5.DIELECTRIC WITHSTANDING RESISTANCE: 1000V AC RMS 50Hz.1MIN
MECHANICAL:
  1.DURRABILITY       :750 CYCLES MIN.
  2.PCB RETENTION PRE-SOLDER : 1 LB MIN.
ENVIRONMENTAL:
  1.STORAGE           : -40℃～+85℃
  2.OPERATION         : -40℃～+85℃

6368011-1 Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded Cat5 0
