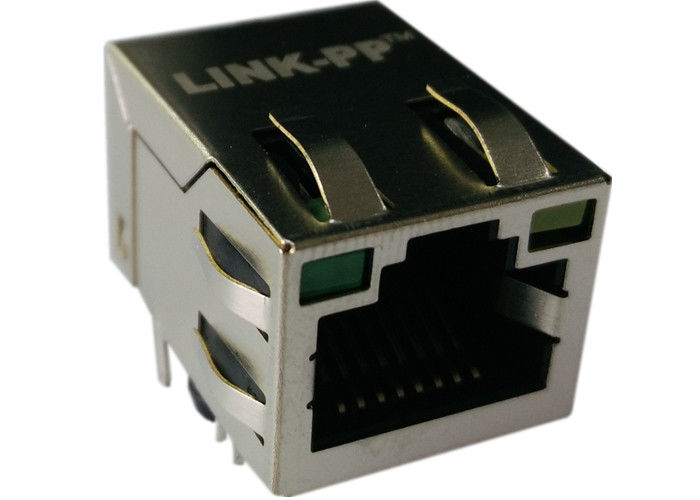

RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle

Name: RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle
Brand: LINK-PP
SKU: 6-6605702-1
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (177 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 6-6605702-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 smd connector, shielded rj45 plugs


Designe PN#:	6-6605702-1	Made In China:	SM-LPJ16XXANL
Family:	Rj45 Connector Jack	Interface:	1000BaseT Tab-up
LED:	Resistor Leds	Samples:	Available

Designe PN#:	6-6605702-1
Made In China:	SM-LPJ16XXANL
Family:	Rj45 Connector Jack
Interface:	1000BaseT Tab-up
LED:	Resistor Leds
Samples:	Available

RJ45 Single Port 6-6605702-1 Modular Jack 10/100BT Shielded Right Angle

Tyco 6-6605702-1

Trader Part Number

6605839-1 Rj45

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ16XXANL

Manufacturer

LINK-PP China

Description

Rj45 Connector jack

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

6-6605702-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃
