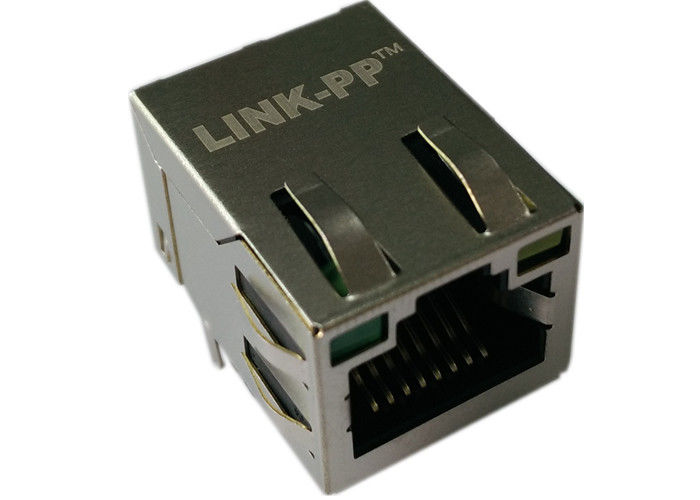

6-6605798-1 Rj45 Integrated Magnetics PCb Layout Shielded Right Angle

6-6605798-1 ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio:
  TX=1CT:1CT        RX=1CT:1CT
2.Inductance OCL: 350uH MIN
  @ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
  1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
  1-30MHz: -18      30-60MHz:-15
  60-80MHz: -12     80-100MHz:-10
5.Cross talk(dB MIN):
  30MHz: -40        60MHz: -35
  100MHz:-30
6.Common Mode Rejection(dB MIN):
  30MHz: -40        60MHz: -35
  100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃
