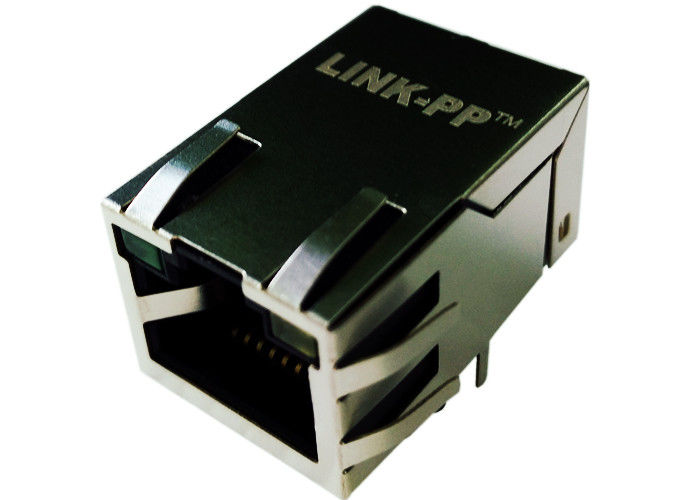

Belfuse SI-53021-F Rj45 Modular Jack Pinout With Integrated Magnetics

Name: Belfuse SI-53021-F Rj45 Modular Jack Pinout With Integrated Magnetics
Brand: LINK-PP
SKU: SI-53021-F
Rating: 5 (165 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: SI-53021-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Designe PN#:	SI-53021-F	Made In China:	SM-LPJ1141AWNL
Family:	Rj45 Network Port	Interface:	10/100Base-TX
LED:	Flexible	Samples:	Available

Designe PN#:	SI-53021-F
Made In China:	SM-LPJ1141AWNL
Family:	Rj45 Network Port
Interface:	10/100Base-TX
LED:	Flexible
Samples:	Available

Belfuse SI-53021-F Rj45 Modular Jack Pinout With Integrated Magnetics

Belfuse SI-53021-F

Trader Part Number

SI-53021-F

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ1141AWNL

Manufacturer

LINK-PP China

Description

10/100M Modular Rj45

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

SI-53021-F ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃
