ARJ21A-MBSD-A-B-EMU2 RJ45 10/100Base-TX 2x1 Jack with Magnetic ABRACON Module

China ARJ21A-MBSD-A-B-EMU2 RJ45 10/100Base-TX 2x1 Jack with Magnetic ABRACON Module supplier

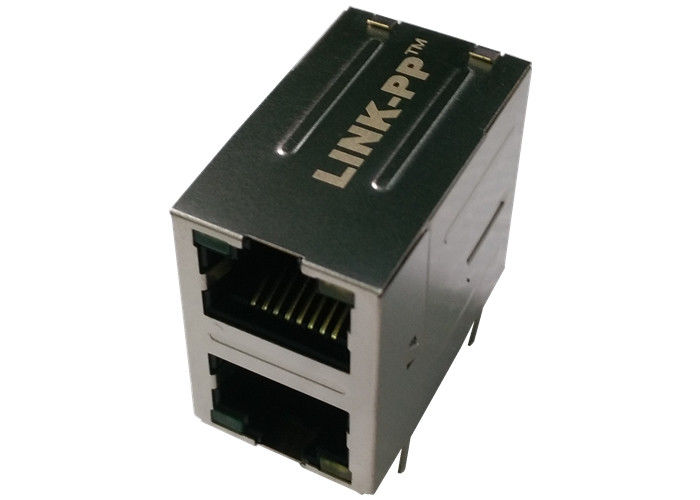

Large Image :  ARJ21A-MBSD-A-B-EMU2 RJ45 10/100Base-TX 2x1 Jack with Magnetic ABRACON Module

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: ARJ21A-MBSD-A-B-EMU2

Payment & Shipping Terms:

Minimum Order Quantity: 350 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: ARJ21A-MBSD-A-B-EMU2 Made In China: SM-LPJ17413BHNL
Family: Rj45 Network Port Interface: 10/100Base-TX
LED: Flexible Samples: Available

ARJ21A-MBSD-A-B-EMU2 RJ45 10/100Base-TX 2x1 Jack with Magnetic ABRACON Module



ARJ21A-MBSD-A-B-EMU2 ABRACON
Trader Part Number
ARJ21A-MBSD-A-B-EMU2
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ17413BHNL
Manufacturer
LINK-PP China
Description
10/100M Modular Rj45
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



 Upper tab up, lower tab down
• Available with or without LED
• Suitable CAT 5 & 6 cable and UTP
• Comply IEEE 802.3ab
• LAN Magnetic with RJ45 Jack
• Suitable for RoHS compliant reflow
• 10, 100 and1000 Base-T LAN
• NIC, LoM and PC
Operating temperature range: 0ºC to +70ºC

ARJ21A-MBSD-A-B-EMU2 Electrical Specifications @25℃
1.Turns Ratio:
  PRI:SEC = 1CT:1CT  %%P2%P2.OCL:
  350uH MIN @ 100KHz,100mV,8mADC
3.Insertion Loss:
  1~100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
  1~30MHz:-18       30~60MHz:-14
  60~80MHz:-12
5.Crosstalk(dB TYP):
  1~30MHz:-40       30~60MHz:-35
  60~80MHz:-30
6.Differential to Common Mode Rejection:
  1~50MHz: -30dB TYP
  50~150MHz: -20dB TYP
7.CMRR: 1~100MHz:-30dB MIN
8.Isolation: 1500Vrms MIN
9.Operating Temperature Range: 0℃~+70℃.

Application field

1) MEDICAL

Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis

2) NETWORKING

Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet

3)TELECOM/DATACOM

Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices

3) CONSUMER

Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices

4) SECURITY

Control Panels, Fire Alarm Zones, Hand Held Devices
