Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: RJMG-7326-71-01
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Designe PN#: |
RJMG-7326-71-01 |
Made In China: |
SM-LPJU5XXXANL |
Family: |
Rj45 Network Port |
Interface: |
10/100Mbps |
LED: |
Flexible |
Samples: |
Available |
Designe PN#: |
RJMG-7326-71-01 |
Made In China: |
SM-LPJU5XXXANL |
Family: |
Rj45 Network Port |
Interface: |
10/100Mbps |
LED: |
Flexible |
Samples: |
Available |
|

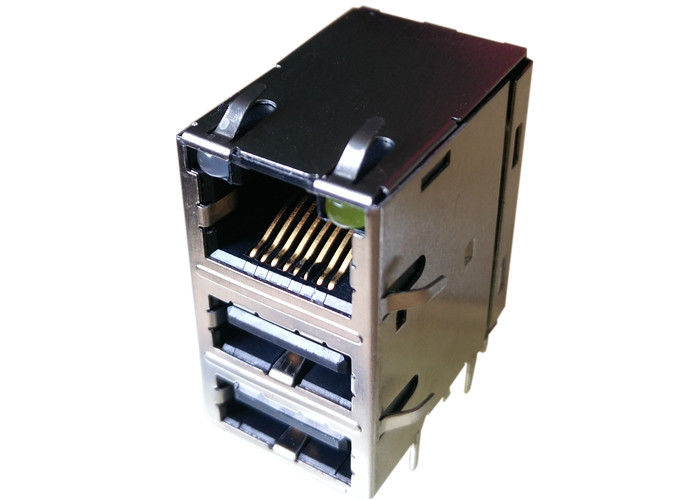

RJMG-7326-71-01 Amphenol
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
RJMG-7326-71-01
|
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China
|
SM-LPJU5XXXANL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|
10/100M Modular Rj45 | |||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
200,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
Amphenol RJMG-7326-71-01 Electrical Specifications @25℃
1.TR:(100KHz,0.1V):
TX=1CT:1CT ±2% RX=1CT:1CT ±2%P
2.LX(100KHz,100mV,8mA,DC Bias):
350uH min
3.INSERTION LOSS:
-1.1dB MAX @ 0.5MHz TO 100MHz
4.RETURN LOSS:
-18dB MIN @ 0.5MHz TO 40MHz
-[18-20LOG(f/30)]dB MIN @ 40.1MHz TO 60MHz
-12dB MIN @ 60.1MHz TO 80MHz
5.CROSS TALK:
-35dB MIN @ 0.5MHz TO 40MHz
-[33-20LOG(f/50)]dB MIN @ 40.1MHz TO 100MHz
6.COMMON MODE REJECTION RATIO(CMRR):
-30dB MIN @ 0.5MHz TO 100MHz
7.HI-POT: 1500Vrms
8.OPERATING TEMPERATURE: 0℃ TO 70℃.
