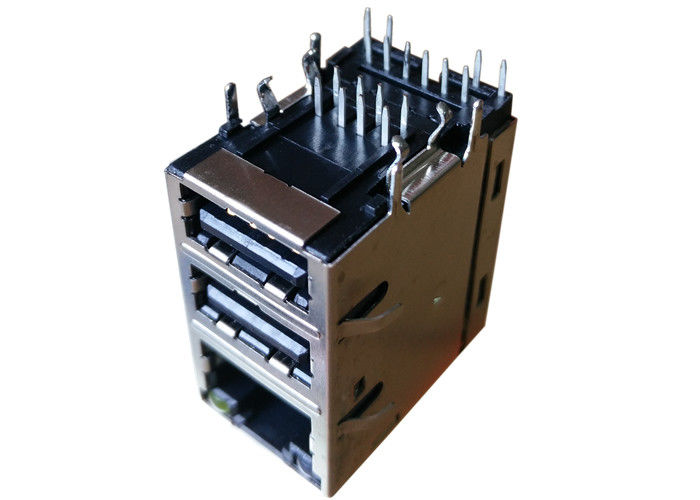

Amphenol RJ-45 / Dual USB RJMG-7321-71-01 Thru-Hole Stacked USB Connector 3Port

China Amphenol RJ-45 / Dual USB RJMG-7321-71-01 Thru-Hole Stacked USB Connector 3Port supplier

Large Image :  Amphenol RJ-45 / Dual USB RJMG-7321-71-01 Thru-Hole Stacked USB Connector 3Port

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: RJMG-7321-71-01

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: RJMG-7321-71-01 Made In China: SM-LPJU5XXXANL
Family: Rj45 Network Port Interface: 10/100Mbps
LED: Flexible Samples: Available

Amphenol RJ-45 / Dual USB RJMG-7321-71-01 Thru-Hole Stacked USB Connector 3Port



Amphenol Rj45 RJMG-7321-71-01
Trader Part Number
RJMG-7321-71-01
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJU5XXXANL
Manufacturer
LINK-PP China
Description
10/100M Modular Rj45
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

Amphenol RJMG-7321-71-01 Electrical Specifications @25℃
1.TR:(100KHz,0.1V):
  TX=1CT:1CT ±2%    RX=1CT:1CT ±2%P

2.LX(100KHz,100mV,8mA,DC Bias):
  350uH min
3.INSERTION LOSS:
  -1.1dB MAX @ 0.5MHz TO 100MHz
4.RETURN LOSS:
  -18dB MIN @ 0.5MHz TO 40MHz
  -[18-20LOG(f/30)]dB MIN @ 40.1MHz TO 60MHz
  -12dB MIN @ 60.1MHz TO 80MHz
5.CROSS TALK:
  -35dB MIN @ 0.5MHz TO 40MHz
  -[33-20LOG(f/50)]dB MIN @ 40.1MHz TO 100MHz
6.COMMON MODE REJECTION RATIO(CMRR):
  -30dB MIN @ 0.5MHz TO 100MHz
7.HI-POT: 1500Vrms
8.OPERATING TEMPERATURE: 0℃ TO 70℃.
