Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: S558-5500-25-F
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
S558-5500-25-F |
LINK-PP P/N: |
SM-LP2019ANL |
Family: |
Ethernet Transformer |
Mounting: |
SMD |
Pins: |
16 Position |
Temperature: |
- 40℃ TO + 85℃ |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
S558-5500-25-F |
LINK-PP P/N: |
SM-LP2019ANL |
Family: |
Ethernet Transformer |
Mounting: |
SMD |
Pins: |
16 Position |
Temperature: |
- 40℃ TO + 85℃ |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
S558-5500-25-F
|
||||||||||||||||||||||||||||||||
|
Trader Part Number
|
S558-5500-25-F
|
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China
|
SM-LP2019ANL
|
|||||||||||||||||||||||||||||||
|
Manufacturer
|
LINK-PP China
|
|||||||||||||||||||||||||||||||
|
Description
|

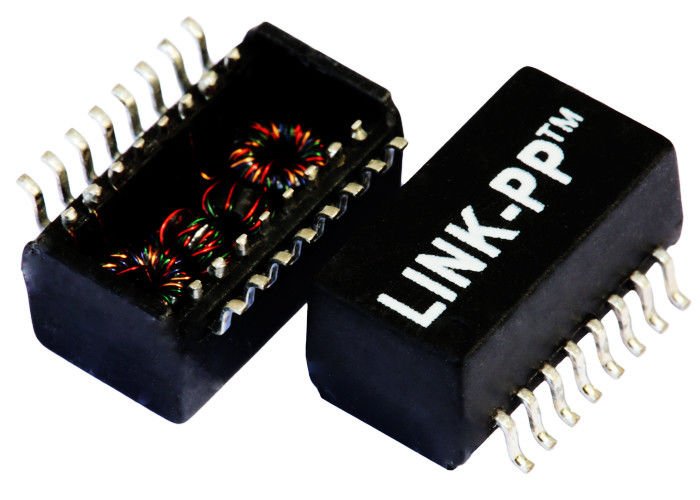

Ethernet Transformer Modules
|
|||||||||||||||||||||||||||||||
|
Documents Available
|
PDF/3D/Step/IGS/Price/Cross
|
|||||||||||||||||||||||||||||||
|
Quantity Available
|
2,000 PCS or 4 weeks
|
|||||||||||||||||||||||||||||||
Detailed Information:
| LINK-PP LP2019ANLE 100% CROSS BELFUSE S558-5500-25-F | |
| LINK-PP Part Number | LP2019ANLE |
| Belfuse Part Number | S558-5500-25-F |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 6 |
| Package Height (Inches) | 0.244 |
| Package Height (mm) | 6.20 |
| Package Length (Inches) | 0.50 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.366 |
| Package Width (mm) | 9.30 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
