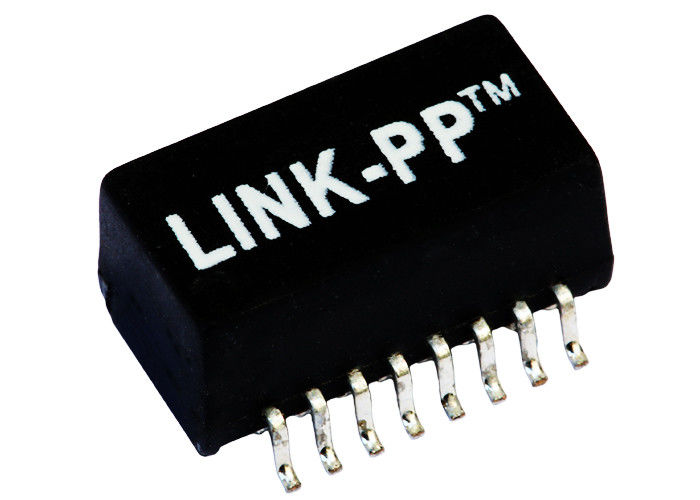

HY601742 10/100Base-T Voip Magnetics Modules With POE Capability

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HY601742

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

power over ethernet transformer

,

ethernet transformer

Pulse PN:
HY601742
Made In China:
SM-LP2019ANL
Family:
Ethernet POE Transformer
Mounting:
Surface Mounting
Pins:
16 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Pulse PN:
HY601742
Made In China:
SM-LP2019ANL
Family:
Ethernet POE Transformer
Mounting:
Surface Mounting
Pins:
16 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
HY601742 10/100Base-T Voip Magnetics Modules With POE Capability
HY601742 10/100Base-T Voip Magnetics Modules With POE Capability
HY601742 Hanrun
Trader Part Number
HY601742
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LP2019ANL
Manufacturer
LINK-PP China
Description
Ethernet Transformer Modules
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



HY601742 Product Features:

Electrical Specification @25℃
1.Turns Ratio:
  TX=1CT:1CT      RX=1CT:1CT
2.Insertion Loss:
  0.1-100MHz:-1.0dB MAX
3.Return Loss:
  0.1-30MHz:-18dB MIN
  30-60MHz: -13dB MIN
  60-80MHz:-12dB MIN
4.Crosstalk:
  0.1-100MHz:-35dB MIN
5.DCMR:
  30MHz:-42dB MIN
  60MHz:-36dB MIN
  100MHz:-33dB MIN
6.CMRR:
  1-100MHz: -40dB TYP
7.L: 1-3,6-8:
  350uH MIN 100KHz 0.1V 8mADC
8.DCR: 1-3,6-8: 0.9 OHM MAX
9.LK:
  1-3(Tie:16+14):0.5uH MAX 100KHz 0.1V
  6-8(Tie:11+9): 0.5uH MAX 100KHz 0.1V
10.Cw/w:
  (1-3),(16-14):28pF MAX 100KHz 0.1V
  (6-8),(11-9): 28pF MAX 100KHz 0.1V
11.Isolation Voltage: 1500Vrms

HY601742 10/100Base-T Voip Magnetics Modules With POE Capability 0

HY601742 10/100Base-T Voip Magnetics Modules With POE Capability
