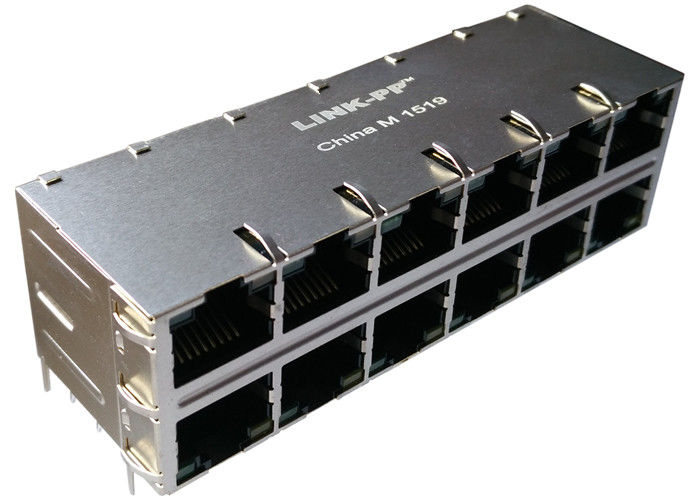

10/100/1000 Base-T RJ45 JC0-0132NL Stacked 2x6 Port Connector without LEDs

Name: 10/100/1000 Base-T RJ45 JC0-0132NL Stacked 2x6 Port Connector without LEDs
Brand: LINK-PP
SKU: JC0-0132NL
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (140 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: JC0-0132NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Product Name:	JC0-0132NL	Made In China:	SM-LPJG67547CNL
Shield Material:	Copper Alloy	Application:	Switch, Router ,PDH, IP Phone, XDSL
PCB Mounting Orientation:	Side Entry (Right Angle)	Samples:	Available

Product Name:	JC0-0132NL
Made In China:	SM-LPJG67547CNL
Shield Material:	Copper Alloy
Application:	Switch, Router ,PDH, IP Phone, XDSL
PCB Mounting Orientation:	Side Entry (Right Angle)
Samples:	Available

10/100/1000 Base-T RJ45 JC0-0132NL Stacked 2x6 Port Connector without LEDs

Pulse JC0-0132NL

1.10/100/1000 Base-T

2.2X6 Port

3.Through hole RJ45 modular jack

4.28.95mm length RJ45 Magjack

Electrical Specifications @ 25℃
1.Transmitter filter & Receiver filter
Type:Balance low pass 100Ω impedance
Insertion Loss:
1～65MHz:-1.0dB MAX
Return Loss:
1～10MHz:-20dB TYP.load 100Ω%%P15Ω
30MHz:-16dB TYP.load 100Ω%%P15Ω
60～80MHz:-12dB TYP.load 100Ω%%P15Ω
2.Inductance (@ 100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Crosstalk:
1～10MHz:-40dB MIN
32～60MHz:-35dB MIN
60～100MHz:-30dB MIN
4.Common Mode Rejection:
1～50MHz:-30dB TYP
50～130MHz:-20dB TYP
5.Hipot: 1500Vrms MIN @60Hz 1 MIN
