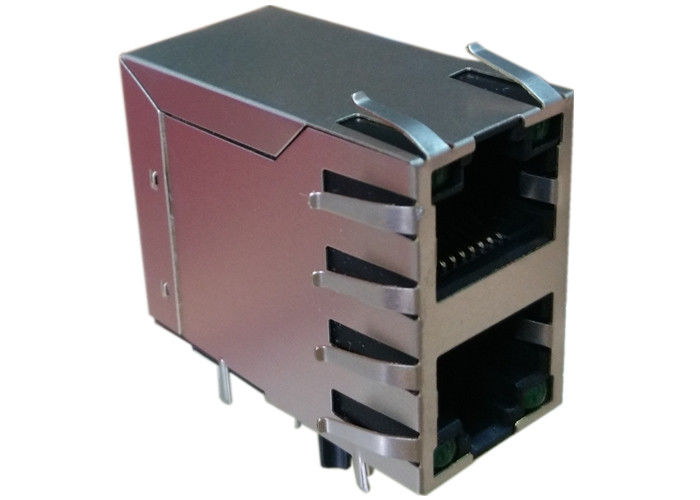

RJMG12163226600R Stacked RJ45 Gigabit 2x1 Port R/A Stack DIP

Name: RJMG12163226600R Stacked RJ45 Gigabit 2x1 Port R/A Stack DIP
Brand: LINK-PP
SKU: RJMG12163226600R
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (136 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: RJMG12163226600R

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


Designe PN#:	RJMG12163226600R	Made In China:	SM-LPJGXXXNL
Category:	Cat5/6	Interface:	10/100/1000Mbps
LED:	Flexible	Samples:	Available

Designe PN#:	RJMG12163226600R
Made In China:	SM-LPJGXXXNL
Category:	Cat5/6
Interface:	10/100/1000Mbps
LED:	Flexible
Samples:	Available

RJMG12163226600R Stacked RJ45 Gigabit 2x1 Port R/A Stack DIP

Fast Ethernet Socket J2042H3CNL 2X8 RJ45 With Internal Magnetics 10/100Base-T

RJMG12163226600R

Trader Part Number

RJMG12163226600R

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJGXXXNL

Manufacturer

LINK-PP China

Description

Stacked 2 Ports

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

RJMG12163226600R ELECTRICAL SPECFICATIONS @25℃ NOTES:
1.Turns Ratio:
TX = 1CT:1CT RX = 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
2～30MHz:-16dB MIN
60～80MHz:-10dB MIN
5.Crosstalk:
0.1～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
7.Operating Temperature: -40℃ TO +85℃.
