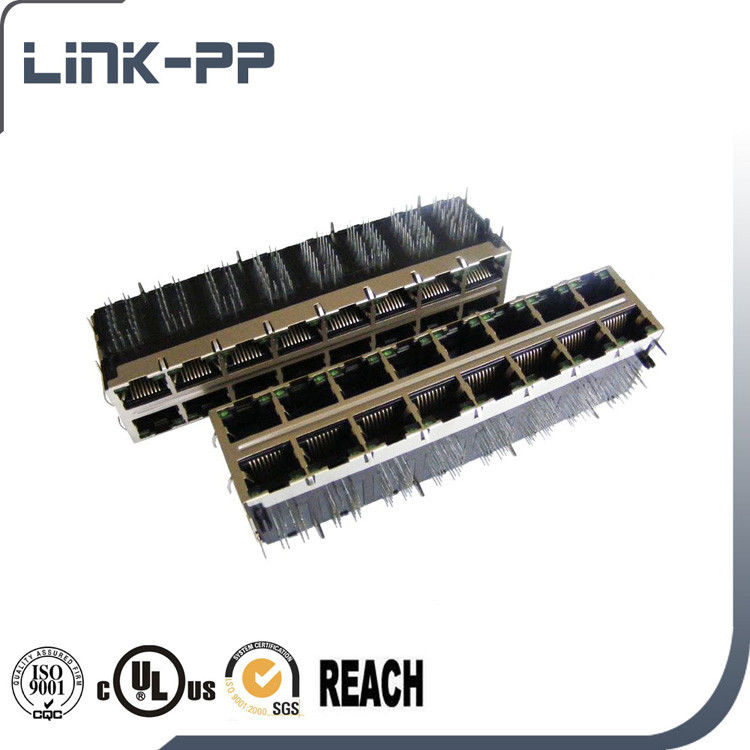

Stacked RJ45 DU8T20103 10/100Base-T RJ45 2x8 Integrated Magnetics Jack

Name: Stacked RJ45 DU8T20103 10/100Base-T RJ45 2x8 Integrated Magnetics Jack
Brand: LINK-PP
SKU: DU8T20103
Price: 0.11 USD
Availability: InStock
Rating: 5 (172 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: DU8T20103

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, rj45 usb connector combo


Designe PN#:	DU8T20103	Made In China:	SM-LPJ8XXXXNL
Family:	Stacked Rj45 Jack	Interface:	10/100Mbps
LED:	Flexible	Samples:	Available

Designe PN#:	DU8T20103
Made In China:	SM-LPJ8XXXXNL
Family:	Stacked Rj45 Jack
Interface:	10/100Mbps
LED:	Flexible
Samples:	Available

Stacked RJ45 DU8T20103 10/100Base-T RJ45 2x8 Integrated Magnetics Jack

DU8T20103

Trader Part Number

DU8T20103

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ8XXXXNL

Manufacturer

LINK-PP China

Description

Mag45-Rj45

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

DU8T20103 Complies with requirement of IEEE 802.3u standards.
RJ-45 connector integrated with transformer/impedance
resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 10/100 BASE transmission over UTP-5 cable
Compliance with ROHS requirements.
Operating temperature range: 0 to +70 . ℃ ℃
Storage temperature range: -25 to + ℃ 85 .

DU8T20103 ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
